Technical Parameters
| Product Height | |
| Max: | 500mm |
| Min.: | 50mm |
| Cubing Height | |
| Max. Production Area (produced on standard size pallets) | 1320*1150mm |
| Size of Pallet (standard) | 1400*1200mm |
| Thickness of Steel Plate | 14mm |
| Thickness of Wooden Pallet | 50mm |
| Base-mix Material Bin Volume (Excl. face-mix hopper) | 2500L |
| Machine Weight | |
| With Face-mix Device | 36T |
| Machine Dimensions | |
| Max. Total Length | 8500mm |
| Max. Total Height | 4885mm |
| Max. Total Width | 3300mm |
| Machine Technical Parameters/Energy Consumption | |
| Vibration System | Servo Vibration System |
| Vibration Table | Max.175KN |
| Upper Vibration | Max.35KN |
| Hydraulic | |
| Total Flow | 540L/min |
| Working Pressure | 160bar |
| Max. Power | 160KW |
Technology Advantage
"Ultra-Dynamic" Servo Vibration Technology Is A High-Efficiency, Self-Adaptive Vibration System Specially Designed For Block Machine; The Servo Motor Can Make The Fastest Response In The Shortest Reaction Time, Realize The Highest Vibration Performance, Reduce The Cement Consumption, Shorten The Production Cycle, And Produce High-Density Concrete Products At The Production Place; Vibration System Can Adapt To The Production Requirements Of Different Concrete Products.
Automatic Quick Mold Changing System Is A System Based On Multi-Device Linkage And Cooperation, Which Realizes Rapid Mold Changing Through Intelligent System Operation. When The Mold Is Transferred To The Main Machine, The Hoisting System Realizes Automatic Mold Change On The Quick Mold Change Device, And The Tamper Head And Mold Box Are Pneumatically Clamped Automatically; Safe, Efficient, Easy To Operate And Maintain, And The Mold Changing

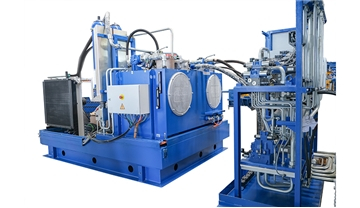

The Hydraulic System Adopts High-End Variable Displacement Pump And Feedback Servo Valve System; Pressure, Speed And Position Are Closed-Loop Digital Control, Which Can Automatically Adjust The Flow And Pressure Of Hydraulic Pump. Independent Oil Temperature Control System Has High Automation Degree And Precision, And The Working Efficiency Can Be Improved By 10%-20%; It Has The Characteristics Of Energy Saving, Noise Reduction, High Efficiency And Environmental Protection.
Adopt The Most Advanced Automatic Control Platform Of Siemens TIA-Portal Series PLC In The World; It Has Faster, More Precise And More Stable Operation Ability And Anti-Interference Ability. Flexible Output Through Platform Control Technology Can Avoid Fierce Impact Action Of Equipment And Prolong Service Life Of Equipment. Visual Display And Diagnosis Of Human-Computer Interaction System And Control System Signals Greatly Facilitate Operation And Work.

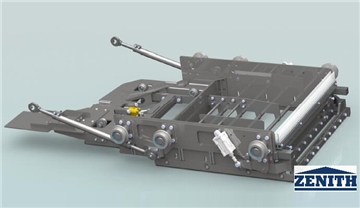

The Feeding System Adopts The Patented Feeding Technology Of 360 Rotary Stirring, And The Stirring Group Is Equipped With Simulation Calculation Stirring Rollers, Which Can Intelligently Adjust The Feeding Mode According To Different Specifications Of Molds; Realize The Uniformity And Efficiency Of Feeding; It Can Be More Suitable For The Best Feeding Mode Of Special Materials Such As Construction Waste And Tailings; With Cylinder Scraping And Blowing Device, It Can Avoid The Influence Of Aggregate Residue On Fabric Color, And Make The Surface Color Of Products More Beautiful.
Through Signal Feedback, The Phase And Speed Of Vibration Are Controlled, And The Synchronization Is High; High-Speed Standby And High-Frequency Operation Can Shorten The Cycle Time By 1.5 S With High Efficiency; The Servo Controller Is A Book-Type Single-Axis Motor Module, And The Driver Adopts A Common DC Bus Connection Mode (Renewable Energy Can Be Utilized And Recycled), Which Can Reduce Energy Consumption By 15%; The Braking Effect Is Better.

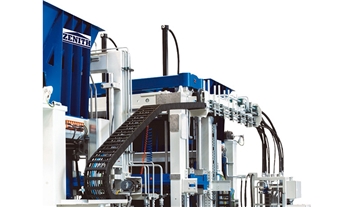

The Main Frame Adopts The High-Strength Welded Frame Structure Designed By Zenith Brick Machine Technology, Which Is Welded By Customized Special Section Steel. The Design Is Reasonable, The Welding Is Uniform And Beautiful, And The Whole Frame Is Treated By Aging Vibration To Ensure The High Quality And High Stability Of The Frame. The Advanced Structural Design Process Makes The Main Machine Expandable, And The Side Mold Opening And Closing Function Cabinet, Board Drawing (Core) Function And Polystyrene Board Implantation Function Can Be Added Later.

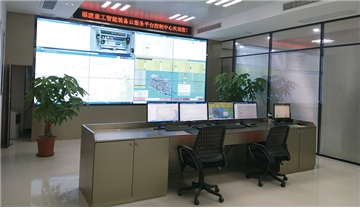

QGM&Zenith Intelligent Equipment Cloud Service Platform Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, And Equipment Health Status Evaluation; Generate Equipment Operation And Application Status Reports And Other Functions; Remote Services Can Quickly Diagnose And Solve Problems For Users. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.

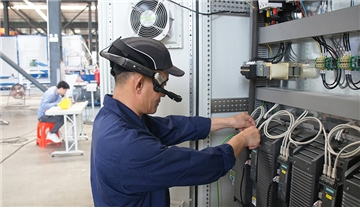

Based On The Intelligent Equipment Cloud Service Platform, With Advanced AR Service Glasses, The Intelligent AR Maintenance Technical Service Of QGM Can Be Constructed, Which Can Realize The Rapid Location Of Fault Errors And The Real-Time Generation Of Solutions. By Establishing A Real-Time Link With The Cloud Service Platform, Online Real-Time Voice And Graphics Communication And Sharing Between Users, Technicians And After-Sales Engineers Can Be Realized, And "You Are My Eye" Can Be Carefully Created To Build A Remote Expert-Level "Precise Surgery" Maintenance Service.

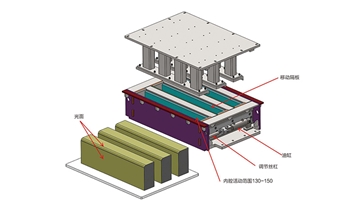

Expandable Mechanical Functional Interfaces Such As Side Mold Opening And Closing Device (Curbstone With Colored Surface Layer), Horizontal Groove Pulling Device (Water Conservancy Brick/Interlocking Hollow Block) And Foam Conveying Device (Insulation Block) Are Reserved, Which Can Realize Rapid Matching Of Multifunctional New Product Production. The DCS PN Data Interface Is Reserved, Which Has Strong Scalability And Can Be Compatible With The User's Central Control System; It Can Also Realize The New Requirements Of Users In The Production Process Of Equipment, And Upgrade And Optimize The Software Of Equipment; To Provide Users With Long-Term Value-Added Services.

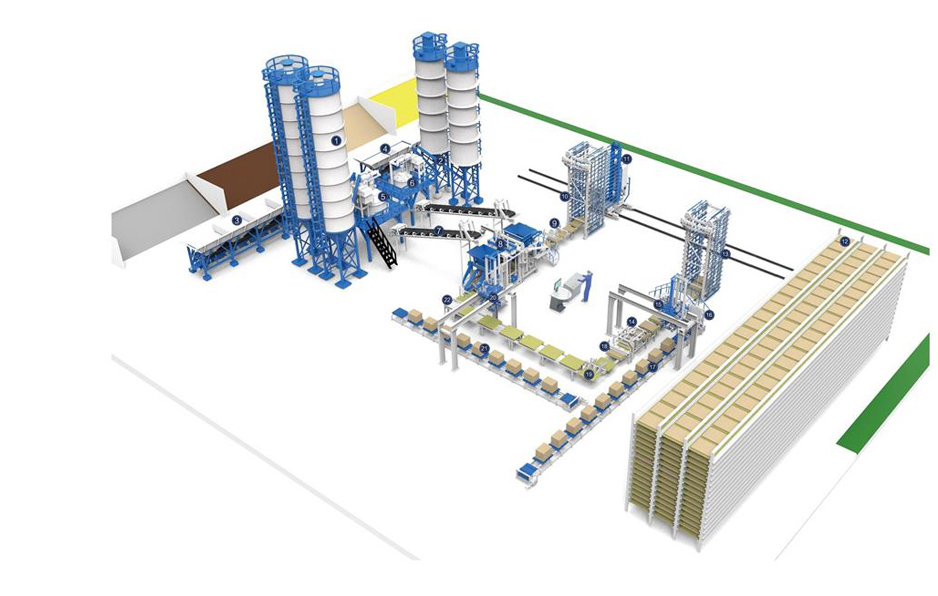

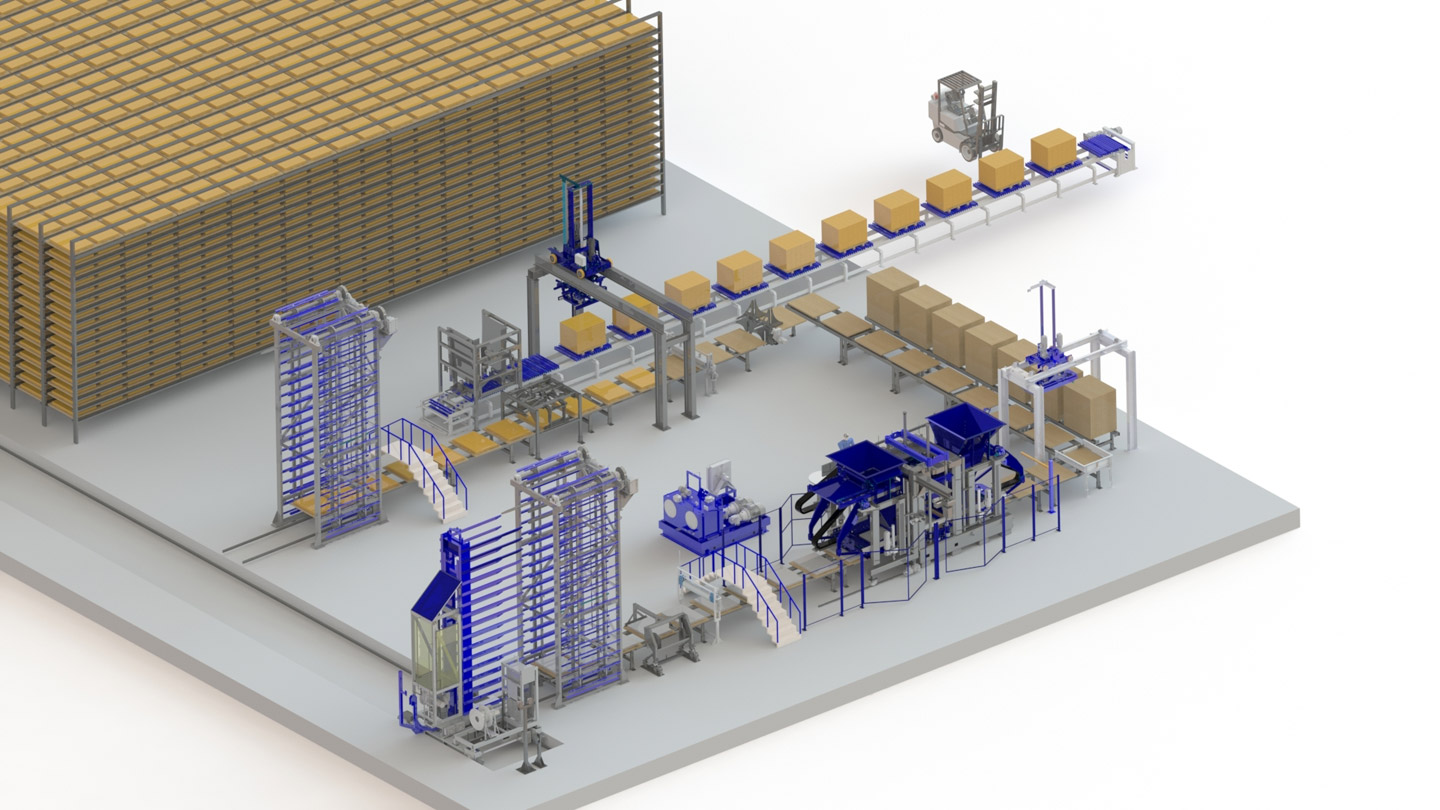

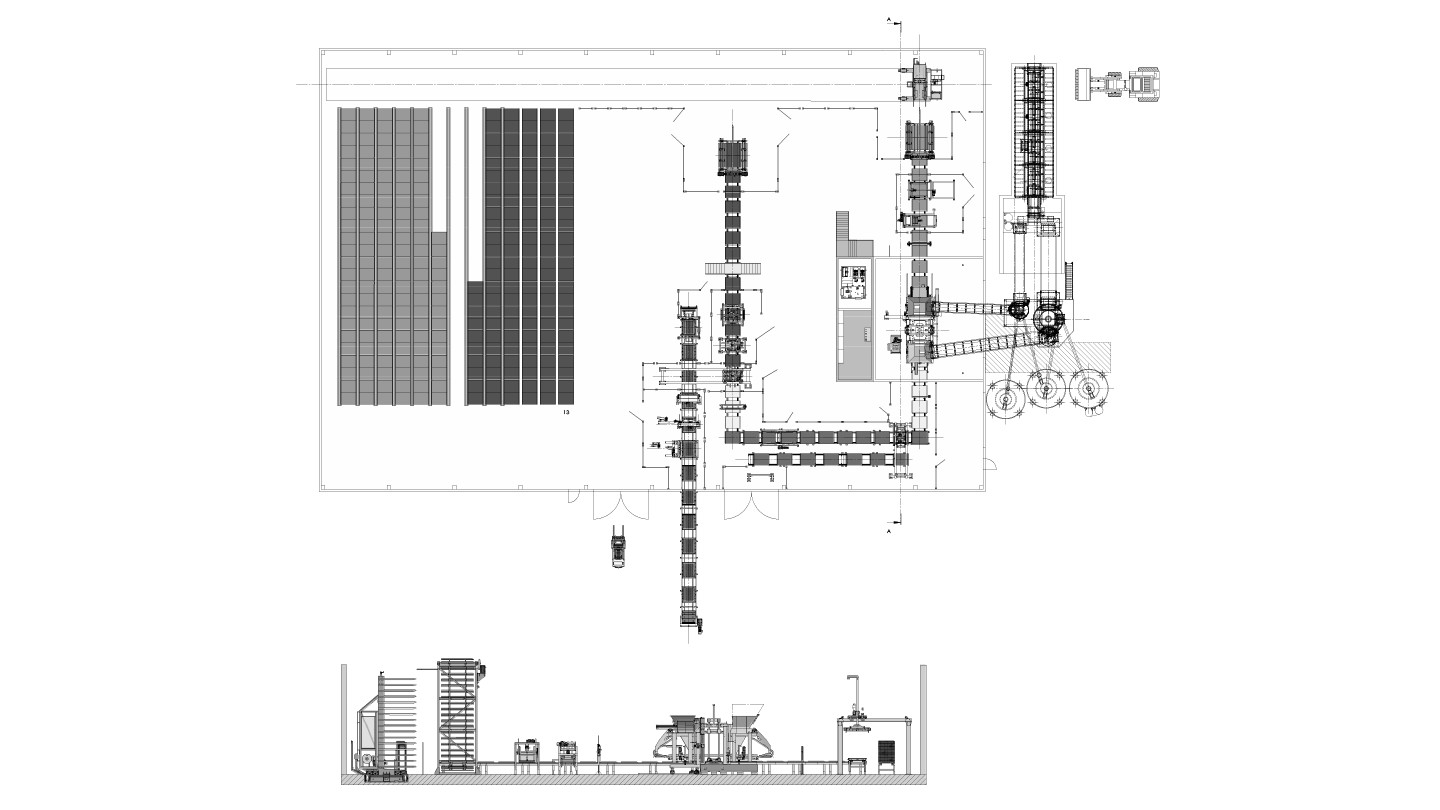

Zenith 1500 Production Line
Corollary Equipment
Batcher
Automatic Pallet Feeder
Moisture Sensor
Finger Car
Block-Pallet Separator
Curing Chamber
Block-Pushing Cuber

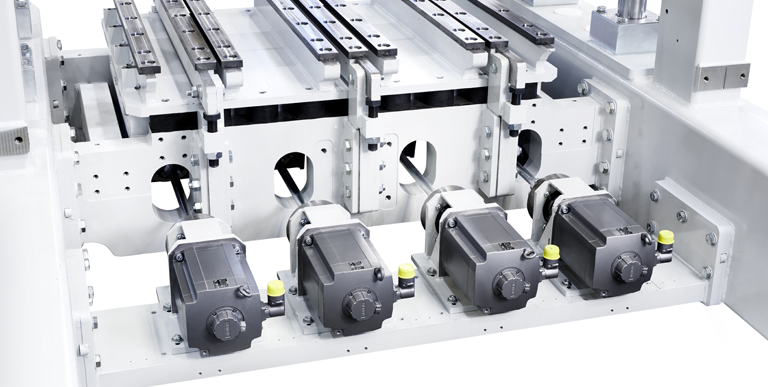

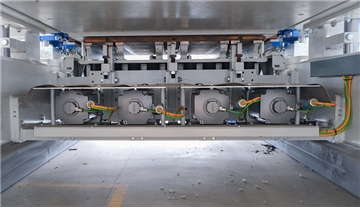

The high quality servo compaction system named Ultra-Dynamic stands for a very high compaction and extreme dynamics. It therefore guarantees a quick and efficient production of top-quality products. Especially for products with a large volume and also for premium products, which are produced with pre- and intermediate vibration, this vibration system provides many advantages. The system works without an oil bath supporting an eco-friendly and low-maintenance production.
The use of screw fittings for the vibration table, the motor cross beam and the frame side parts is a special feature of this machine. It is unique on the market as it can adapt to customer’s production conditions. The screwed construction also provides for resistant connections and an excellent stability.

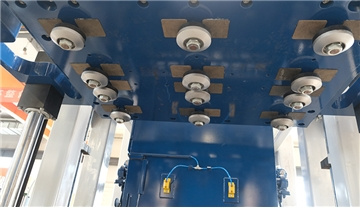

The pneumatic mould clamping device provides for an easy mould change. The mould is positioned without further fastenings - e.g. bolts - on the mould holder. It is fixed by the pneumatically operated clamping levers. Optimal vibration results and a longer mould life time are achieved thanks to the individual adjustments of pre- and main vibration. The mould clamping device can now be adapted to mould fastening systems of other machine and mould manufacturers.

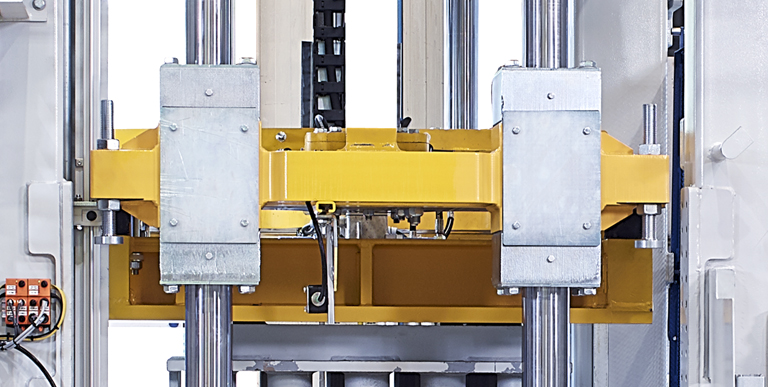

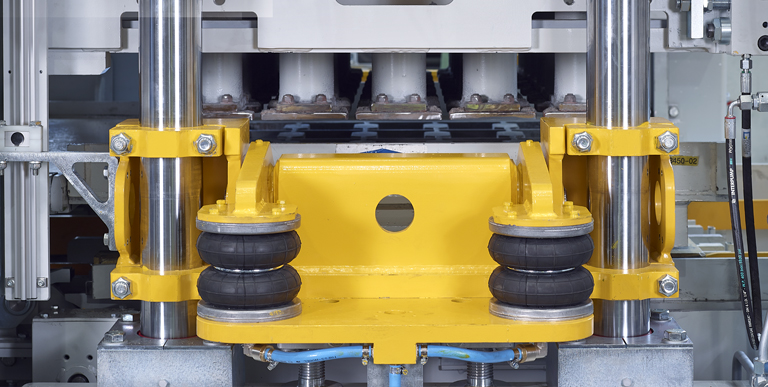

A new traverse has been developed for the machine ZENITH 1500-2 which allows to remove the columns individually from the side. This new feature saves a lot of time during maintenance work and the exchange can be carried out much more safely and with less effort. The entire geometry of this assembly including columns is identical to previous machine ZENITH 1500. It is possible to retrofit this new traverse on existing machines.

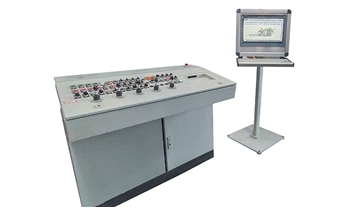

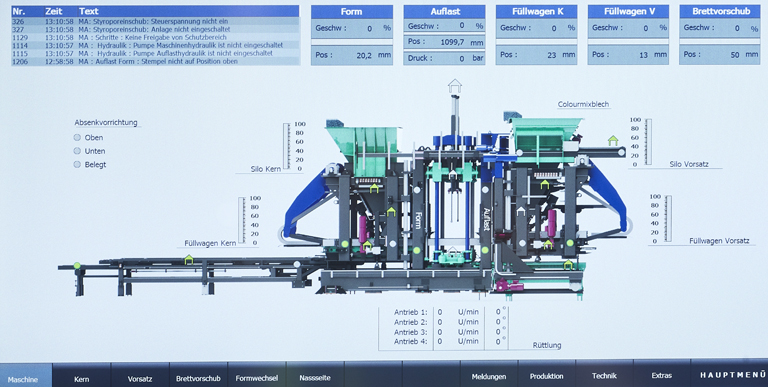

The self-explanatory and intuitionally visualization concept guarantees for an easy learning of the machine operation. A new diagnostic design supports the operators in choosing the best adjustments. Time-consuming trouble shooting is no longer necessary and production downtimes are reduced to a minimum. By using the latest database technology, all information can be recorded, evaluated and stored. This data is available anywhere thanks to the complete plant networking.
