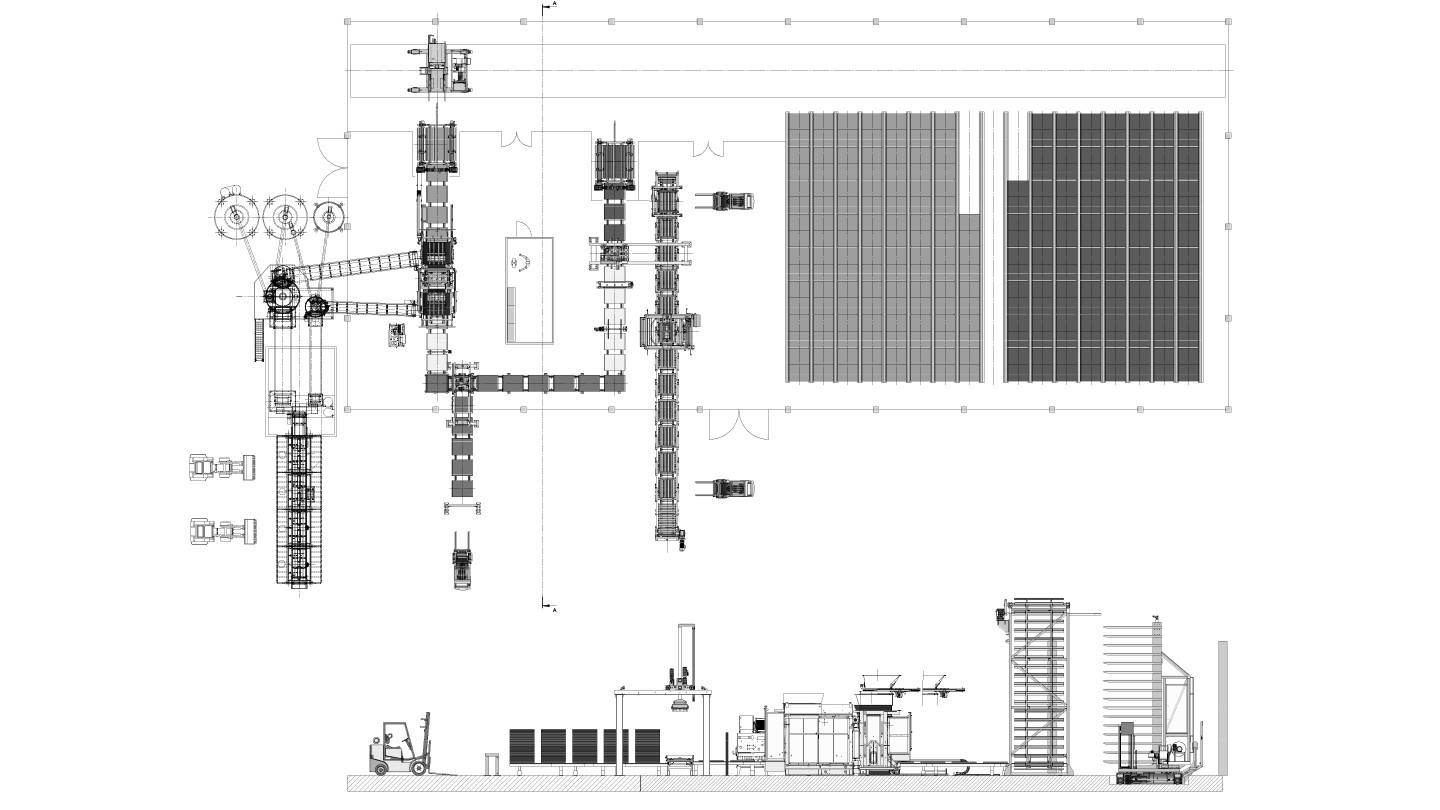

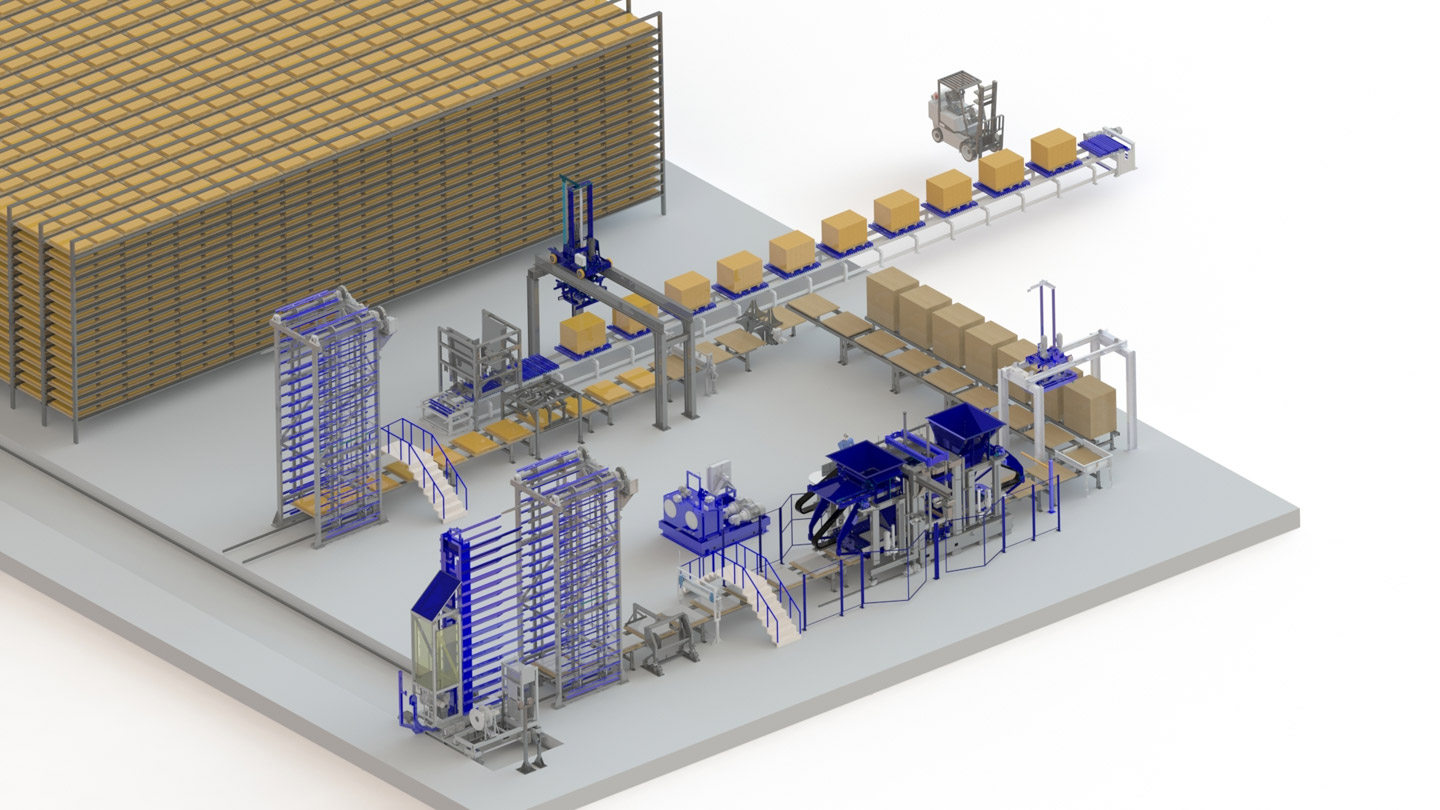

Mobile Laying Brick Machine is a brick-making machine. It is easy to operate and suitable for small brick factories. It moves with the change of the work site. This equipment does not require a pallet. The pressed bricks are placed on the site as the brick machine moves, saving a lot of pallet costs, but the site area needs to be large enough. Mobile Laying Brick Machine adopts an advanced PLC intelligent control system, which can realize human-machine dialogue, fully automatic operation, random signal analysis, automatic fault diagnosis and various parameter settings. This machine has the advantages of simple and compact structure, easy operation, easy maintenance, low power consumption and high output.
Product Video

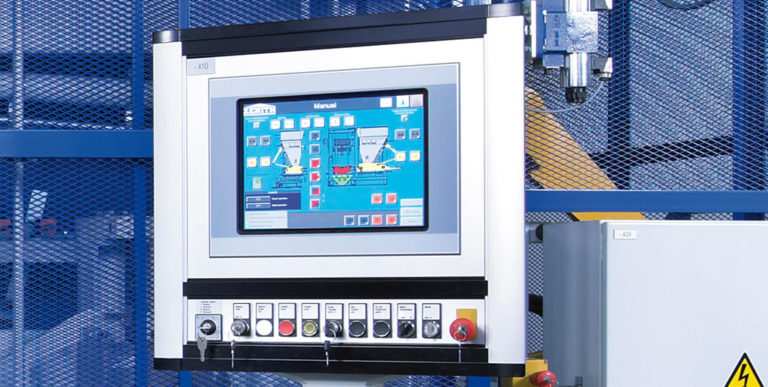

The self-explanatory, menu-driven Touch Panel makes the machine operation very easy. The production parameters for different mould types and production programmes are entered and saved by using the well-arranged menu masks. A quick Siemens SPS is used for internal signal processing.

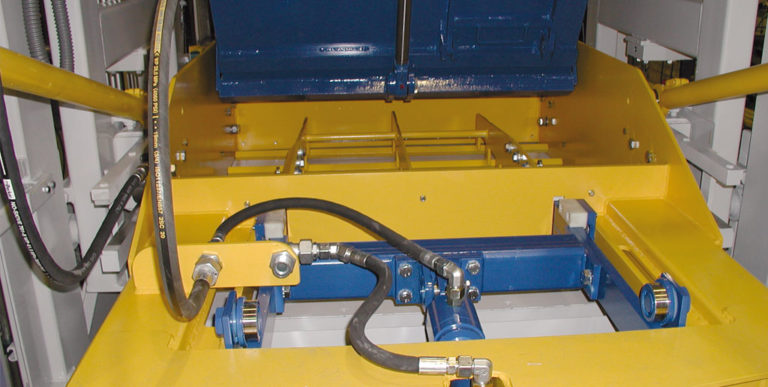

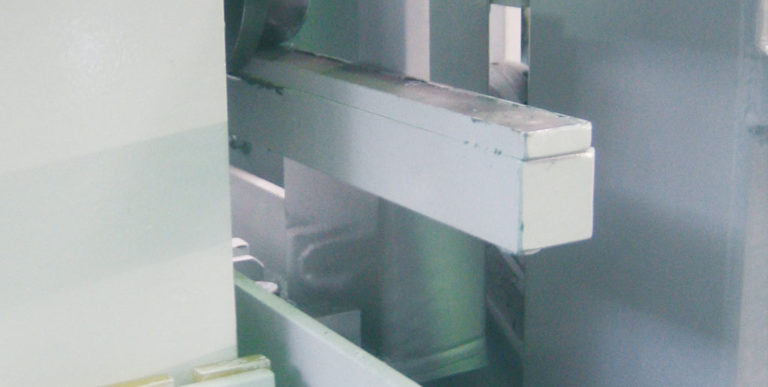

The large dimensioned columns and guiding bearings, supported by the synchronization of movements via chain and lever shaft, guarantee a safe and precise guiding of mould and tamper head. Digital path measuring via linear encoder is optionally available.

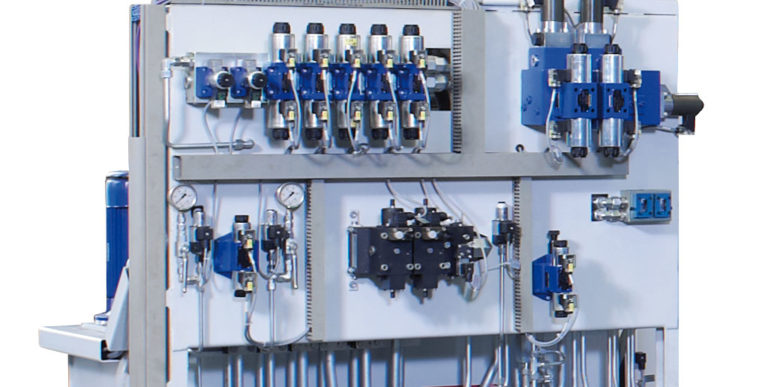

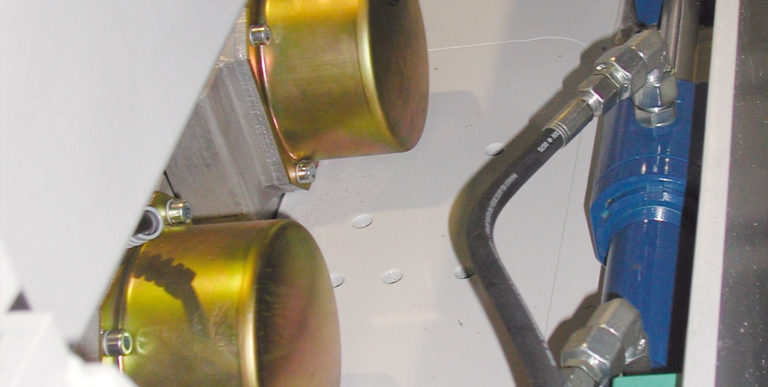

Main movements of the machine (moving of vibrating table, mould and tamper head lift and moving of feed drawer) are driven by hydraulic cylinders, developed by ZENITH, and are activated via proportional valves. The products can be put down during demoulding with controlled descending speed.

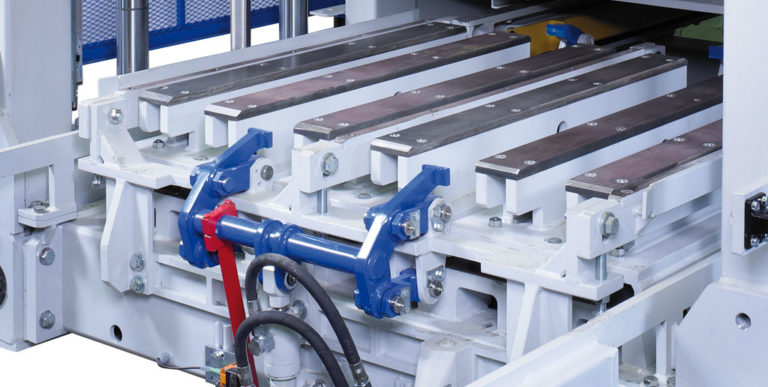

The main tamper head can be equipped with a hydraulically operated quick change device for fast mould change. For curbstones produced crosswise to the filling direction, the machine can optionally be equipped with a rotating tamper head device for easy cleaning of tamper head swords by using the feed drawer brushes.
To increase the machine’s capacity, it can be outfitted with the optional ”Speed & Comfort“ package. This package includes controls and hydraulics with higher performance, digital path measuring system for all main movement axes, tamper head quick change device and a back concrete feed drawer with hydraulically operated grate.
When working without face mix unit, the machine can be equipped with a polystyrene core insertion device for production of insulation blocks or with a rotating brush for sweeping of block surfaces.
Technical Data
| Features | |
| Base material hopper | 1,200L |
| Base material feedbox | 2,000L |
| Pigment hopper | 800L |
| Pigment feedbox | 2,000L |
| Max.feeding height of loader | 2,800mm |
| Forming size | |
| Max.forming length | 1,240mm |
| Max.forming width(producing on the vibration table) | 1,000mm |
| Max.forming width(producing on the ground) | 1,240mm |
| Product height | |
| Multi-layer production | |
| Min.product height(producing on the pallet) | 50mm |
| Max.product height | 250mm |
| Max.stacking height(pallet+ height of one layer product) | 640mm |
| Low level production on the pallet | |
| Max.product height | 600mm |
| Low level production on the floor | |
| Max.product height | 650mm |
| Production on the floor | |
| Max.product height | 1,000mm |
| Min.product height | 250mm |
| Machine weight | |
| Without mould and pigments device | 11.7 T |
| Pigment device | 1.7 T |
| Machine size | |
| Total length(without pigment device) | 4,400mm |
| Total length(with pigment device) | 6,380mm |
| Max.total height | 3,700mm |
| Min.total height(transport height) | 3,240mm |
| Total width(including control panel) | 2,540mm |
| Vibration system | |
| Max.exciting force of the vibration table | 80KN |
| Min.exciting force of the top vibration | 40KN |
| Energy consumption | |
| Based on the maximum number of vibrating table | 42KW |

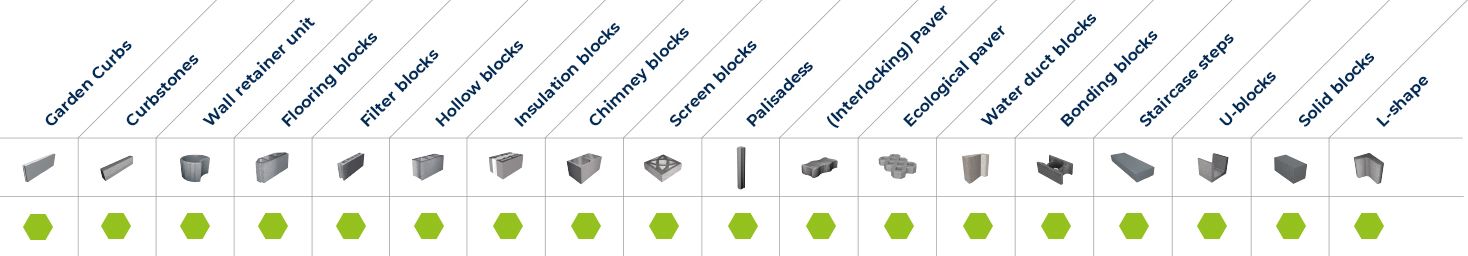

Production Capacity
| Block Type | Dimension (mm) | Pictures | Qty/Cycle | Cycle Time | Production Capacity (Per 8hs) |
| Hollow Block | 400*200*200 |
|
12 | 40s | 8,640 pcs |
| Rectangular Paver | 200*100*60 |
|
54 | 38s | 817m2 |
| Rectangular Paver (without facemix) | 200*100*60 |
|
54 | 36s | 864m2 |
| UNI Pavers | 225*112.5*60-80 |
|
40 | 38s | 757m2 |
| Curstone | 150*1000*300 |
|
4 | 46s | 2,504 pcs |
