Hollow Brick Machine is a brick machine equipment that specializes in the production of hollow bricks, multi-row perforated bricks and other building materials. Hollow Brick Machine uses fly ash, construction waste, slag, gangue, river sand, gravel and other materials, adds a small amount of cement, and produces hollow bricks through a specific process. This kind of brick is not only environmentally friendly and economical, but also effective. It is a new type of wall material. The main structure of Hollow Brick Machine includes a feeding mechanism, a frame, a silo, a pressure head, a board feeding mechanism, a lifting workbench, a control cabinet and a brick conveyor rack. Its technical parameters include molding cycle, vibration frequency, whole machine weight, etc., which ensure production efficiency and product quality. In addition, the hollow brick machine also supports intelligent control according to the density and strength of different materials to realize human-computer dialogue. It is an advanced production line integrating mechanical, electronic and hydraulic technologies.
Product Video

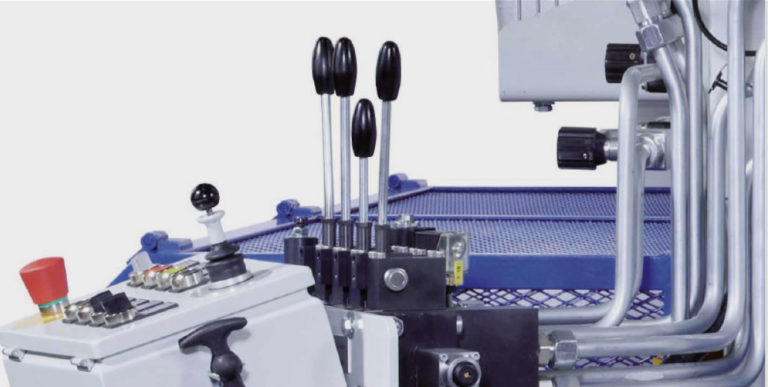

Main movements of machine are controlled by proven directional SLF control valves. With the fully automatic machine, these valves are equipped with additional control magnets for automatic as well as for manual operation.

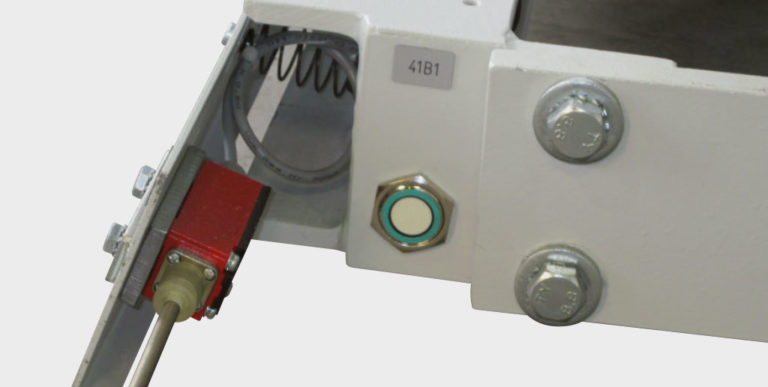

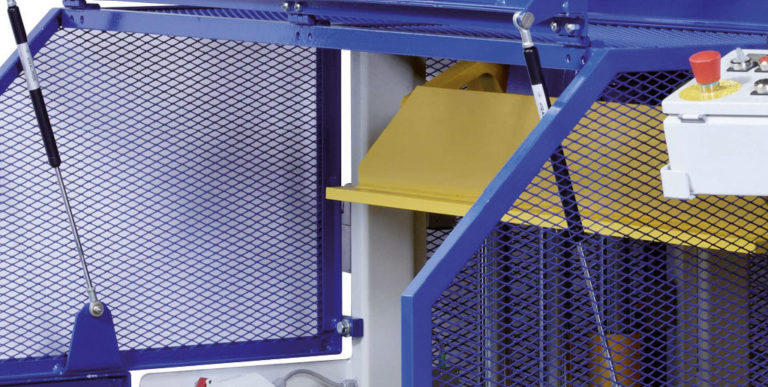

Telescopic springs at the machine safety cage allow quick accessibility to mouldarea for easy cleaning and maintenance. Robust and easy to handle lock systems provide full safety.

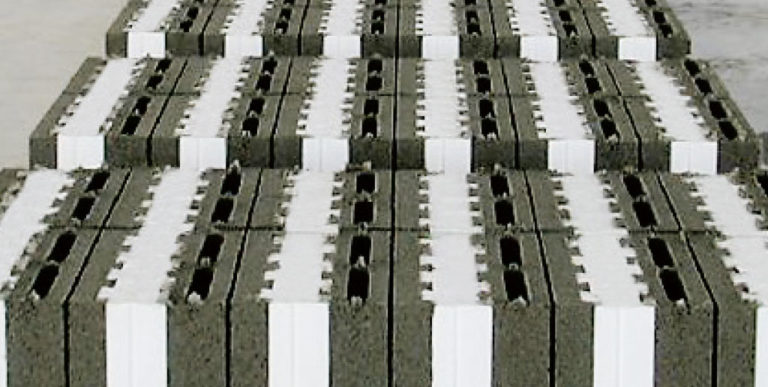

For production of insulating blocks, machine can be equipped with a polystyrene core insertion device.

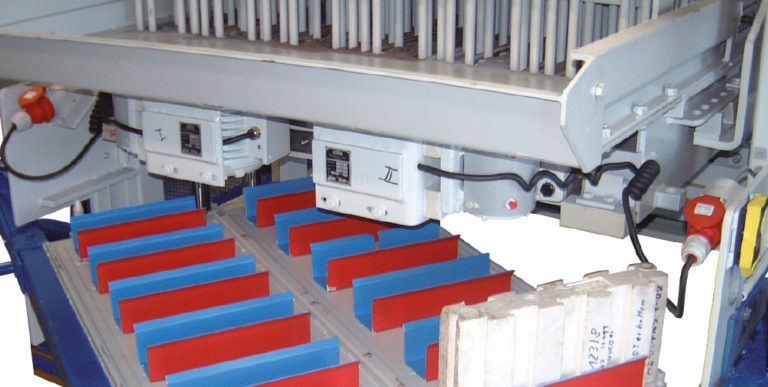

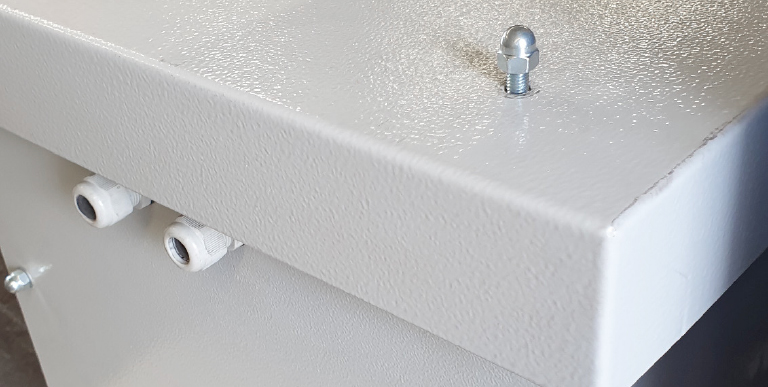

The specially developed transformer allows a worldwide use of the machine without laborious modification of the equipment. Existing machines can be retrofitted if needed. The transformer also offers the advantage to operate the 913 machine now with 4 mould vibrators at lower voltages like 220 V/60 Hz for example.

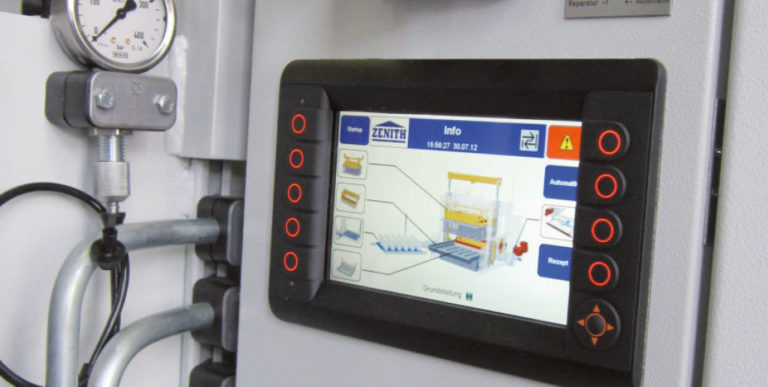

Fully automatic machine 913 Speed & Comfort is equipped with a robust, fully automatic controller, specially developed for use with mobile work machines. The dialogue module with colour display and clearly arranged visualisation allow easy operator access.
With machine 913 Speed & Comfort, the electric drive unit with frequency control allows a fast and at the same time gentle machine travelling. As an option, the machine can be equipped with ultrasonic devices for fully automatic correction of travel direction.
Technical Data
| Features | |
| Hopper volume | 1,000L |
| Max.feeding height of the loader | 2,005L |
| Max.forming length | 1,240mm |
| Max.forming width | 1,130mm |
| Min.product height | 175mm |
| Max.product height | 330mm |
| Weight | |
| Including mould and vibration motor | 5T |
| Size | |
| Total length | 2,850mm |
| Total height | 3,000mm |
| Total width | 2,337mm |
| Vibration system | |
| Max.exciting force of vibration table | 48KN |
| Max.exciting force of upper vibration | 20KN |
| Energy consumption | |
| With maximum numbers of vibration motor | 16KW |
Production Capacity
| Block Type | Dimension (mm) | Pictures | Qty/Cycle | Cycle Time | Production Capacity (Per 8hs) |
| Hollow Block | 400*200*200 |
|
12 | 35s | 9,792 pcs |
| 400*150*200 | 16 | 35s | 13,165 pcs | ||
| 520*160*200 | 12 | 35s | 9,792 pcs | ||
| Soild Block | 225*112.5*80 |
|
12 | 35s | 9,792 pcs |
