The fully automatic cement block forming machine can generally use mountain sand, river sand, sea sand, slag, slag, fly ash, stone powder, stones, cement, construction waste, etc. as raw materials. Through scientific proportioning, water mixing, and high-pressure vibration forming, it can produce cement standard blocks, hollow blocks, as well as mechanical equipment for producing cement standard bricks, curbstones, and colored pavement bricks.
Automatic Cement Block Making Machine is a highly automated equipment specially used for producing cement blocks and brick making equipment. It mainly uses mountain sand, river sand, sea sand, slag, slag, fly ash, stone powder, gravel, cement, construction waste, etc. as raw materials. After scientific proportioning, adding water and stirring, it produces cement standard blocks and hollow blocks through high-pressure vibration molding. It can also produce cement standard bricks, curbstones and colored pavement bricks. Automatic Cement Block Making Machine adopts hydraulic system control, PLC programmable controller centralized operation, and advanced distributor and vibration system to ensure the density and consistency of the product. These characteristics make the automatic cement block making machine an important brick making machinery and equipment in the production of modern building materials.
Product Video
Main Technology Features

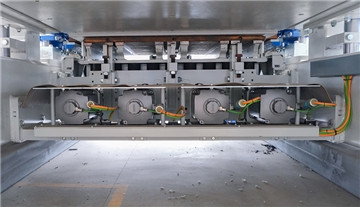

Servo vibration system
The machine is equipped with the newly developed servovibration system, which has a dense and high-excitedvibration force, thus ensuring production in an efficientway, especially for large products and high-quality products, which need to be produced by pre-vibration andtransitional vibration, can achieve a really nice effect.

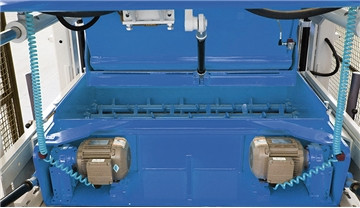

Compulsory feeding
The feeding system is applied with the Germany patenteddesign, which is suitable for the use of construction wasteand other special aggregates. wWhat's more, the discharging gate is controlled by sEw motor. The feedingframe, bottom plate & mixing blades are made of high-duty sweden HARDOx steel, which strengthen thesealing performance and prevent the material leakage toguarantee the long service life, feeding uniform for theimproved product quality.

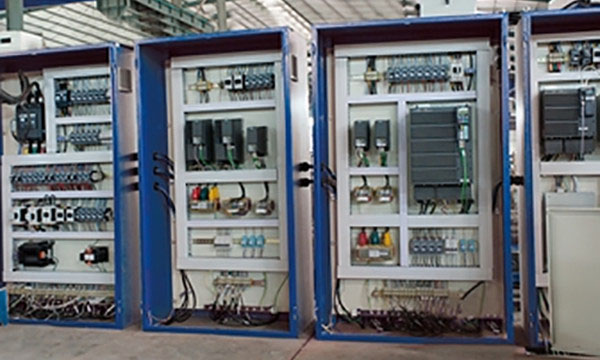

SIEMENS frequency conversional control
SIEMENS Frequency conversional technology was re-innovated and improved by Germany R&D center. Themain machine vibration adopts low frequency standby,high frequency operation, which improve the runningspeed and product quality. At the same time, it reducesthe impact on the mechanical parts and the motor,prolongs the life of the machine and the motor, and savesabout 20%-30% of electricity compared with the traditional motor operation control.
Fully-automatic control
Perfectly combine the automation technology and systemfrom Germany.The automatic control is of easy operation,low failure ratio and high reliability.At the same time, ithas the functions of product formula management andoperation data collection.

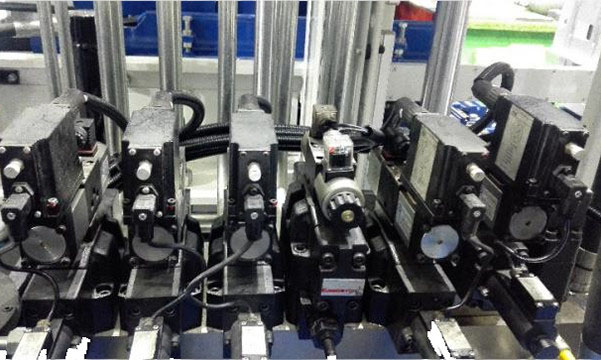

High-efficient hydraulic system
The hydraulic pump & valve are from international brand,which adopt high dynamic proportional valve and constantoutput pump to adjust the speed & pressure, with thefeatures of high-stability, high efficiency and energy-saving.

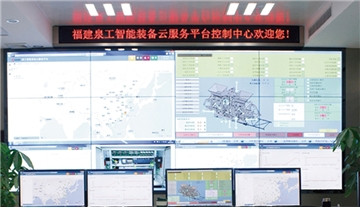

lntelligent Cloud System
QGM intelligent equipment cloud system realizes onlinemonitoring, remote upgrade, remote fault prediction andfault self-diagnosis, equipment health status evaluation;generates equipment operation and application statusreports and other functions; with the advantages ofremote control & operation, quick troubleshooting &maintenance for the clients. Everything is interconnected,and the production and operation of equipment can beseen through the network in every corner of the world.
Technical Data
| Max. forming area | 1,300*1,050mm |
| Height of finished product | 50-500mm |
| Moulding cycle | 20-25s(following the product shape) |
| Exciting force | 160KN |
| Pallet size | 1,400*1,100*(14-50)mm |
| Forming block number | 390*190*190mm(15 block/ mould) |
| Vibration table | 4*7.5KW |
| Top vibration | 2*1.1KW |
| Electrical control system | SIEMENS |
| Total installed capacity | 111.3KW |
| Total weight | 18.3T(without face material device) 28.2T(with face material device) |
Production Capacity
| Block Type | Output | ZN900C Block Making Machine |
240*115*53mm
|
Number of formed blocks(block/ mould) | 50 |
| Cubic meter/ hour (m3/ hour) | 13-18 | |
| Cubic meter/ day (m3/ 8 hours) | 1005-140 | |
| Number of brick (blocks/ m3) | 683 | |
390*190*190mm
|
Number of formed blocks(block/ mould) | 9 |
| Cubic meter/ hour (m3/ hour) | 22.8-30.4 | |
| Cubic meter/ day (m3/ 8 hours) | 182.5-243.3 | |
| Number of brick (blocks/ m3) | 71 | |
400*400*80mm
|
Number of formed blocks (block/ mould) | 3 |
| Cubic meter/ hour (m3/ hour) | 69.1-86.4 | |
| Cubic meter/ day (m3/ 8 hours) | 553-691.2 | |
| Number of brick (blocks/ m3) | 432-540 | |
245*185*75mm
|
Number of formed blocks (block/ mould) | 15 |
| Cubic meter/ hour (m3/ hour) | 97.5-121.5 | |
| Cubic meter/ day (m3/ 8 hours) | 777.6-972 | |
| Number of brick (blocks/m3) | 2160-2700 | |
250*250*60mm
|
Number of formed blocks(block/ mould) | 8 |
| Cubic meter/ hour (m3/ hour) | 72-90 | |
| Cubic meter/ day (m3/ 8 hours) | 576-720 | |
| Number of brick (blocks/ m3) | 1152-1440 | |
225*112.5*60
|
Number of formed blocks(block/ mould) | 25 |
| Cubic meter/ hour(m3/ hour) | 91.1-113.9 | |
| Cubic meter/ day(m3/ 8 hours) | 728.9-911.2 | |
| Number of brick (blocks/ m3) | 3600-4500 | |
200*100*60
|
Number of formed blocks(block/ mould) | 36 |
| Cubic meter/ hour(m3/ hour) | 103.7-129.6 | |
| Cubic meter/ day(m3/ 8 hours) | 829.4-1036.8 | |
| Number of brick(blocks/ m3) | 5184-6480 | |
200*200*60
|
Number of formed blocks(block/ mould) | 4 |
| Cubic meter/ hour (m3/ hour) | 72-90 | |
| Cubic meter/ day (m3/ 8 hours) | 576-720 | |
| Number of brick(blocks/ m3) | 576-720 |
feature
1. The fully automatic cement block forming machine is a fixed, table vibration type, mechanical demoulding machine. The design of this model is advanced and reasonable, with a wide range of applications. It adopts a reducer, a brake and a magnetic bending arm to surround the demoulding process.
2. Storage and material separation device: using a closed belt conveyor, strictly controlling the semi storage capacity of small materials, achieving immediate use as needed, preventing concrete from liquefying prematurely due to aftershocks, and ensuring product strength.
3. Unique vibration form: using computer control of hydraulic system flow and pressure to achieve vertical synchronous vibration, frequency conversion, and braking; The advanced compression molding vibration form enables concrete to fully liquefy and exhaust within 2-3 seconds. Utilize excess oil during pressurization to convert it into shock force, thereby effectively eliminating energy consumption.
4. Reasonable vibration distribution: Lock the mold box on the vibration table through the release oil cylinder, and the mold table will vibrate together; A dedicated vibrator is also installed on the pressure head to increase the vibration speed. This form of vibration causes rapid liquefaction and exhaust of concrete, resulting in high-density and high-strength products. Various high-quality load-bearing or non load-bearing products can be produced by utilizing a large proportion of waste ash, waste residue, slag, coal mine stone, volcanic ash, coal ash, stone chips, and construction waste.
5. The unique feeding and arch breaking device enables materials to be quickly and evenly fed into the mold box; Special dual ended composite output vibration technology and reasonable arrangement of vibrators ensure uniform distribution of excitation force within the vibration table. To ensure consistency in the weight and strength of the product.
