1. Small and medium-sized building materials enterprises
Standard blocks (strength grade ≥MU10)
Hollow blocks (hollow ratio 30-50%)
Pavement bricks (compressive strength ≥30MPa)
2. Municipal garden projects:
Curbstones (dimensional accuracy ±1mm)
Slope protection bricks (freeze-thaw resistance ≥50 times)
Square paving tiles
3. Solid waste resource utilization
Construction waste recycled blocks (mixing amount ≥60%)
Fly ash environmentally friendly blocks (mixing amount ≥40%)
4. Rural construction projects
New rural construction bricks
Small water conservancy project blocks
Agricultural facility building materials
ZenithQT6 automatic block making machine service guarantee
Supported by the German technical team
18-month quality assurance
Intelligent operation and maintenance system
72-hour emergency response
Product Video
Main Technology Features

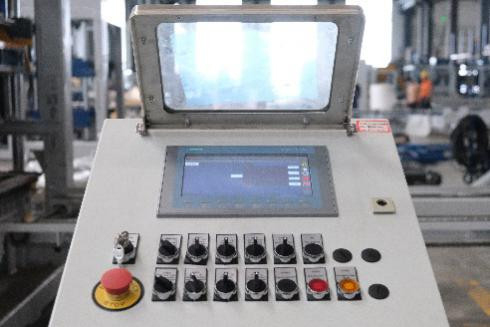

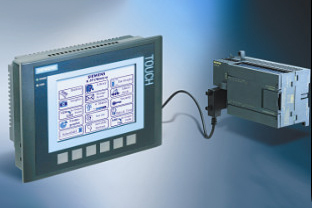

1. Adopts the most advanced frequency conversional control system from German SIEMENS, plus with the Siemens Touch Screen
A. Visualization screen with easy operation;
B. Able to set up, update and amend the production perimeters, to maximize the production output;
C. Dynamic display of the system’s status, automatic troubleshooting, and warning notice;
D. Automatic locking can prevent the production line from mechanical accidents caused by operation mistakes;
E. Troubleshooting via the teleservice.

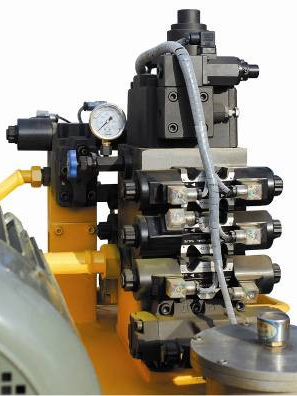

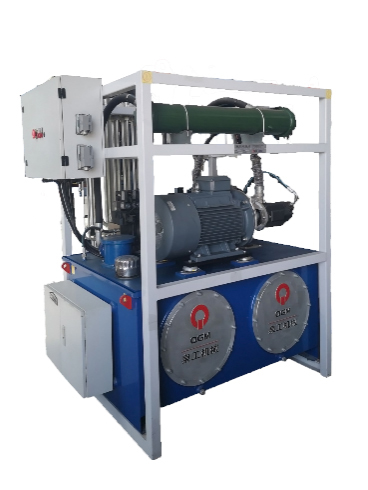

2. Hydraulic pumps and valves from international brands are used.
High dynamic proportional valves and a constant output pump are adopted, so as to have a precise adjustment to the oil flow and pressure, which can provide the client with a stronger quality block, more efficient and energy-saving production.

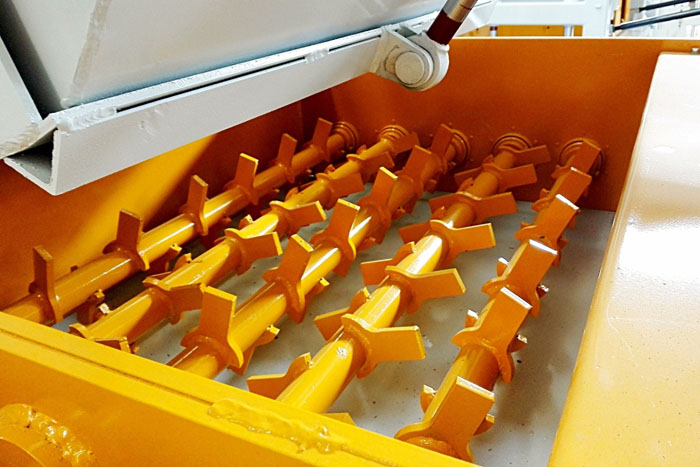

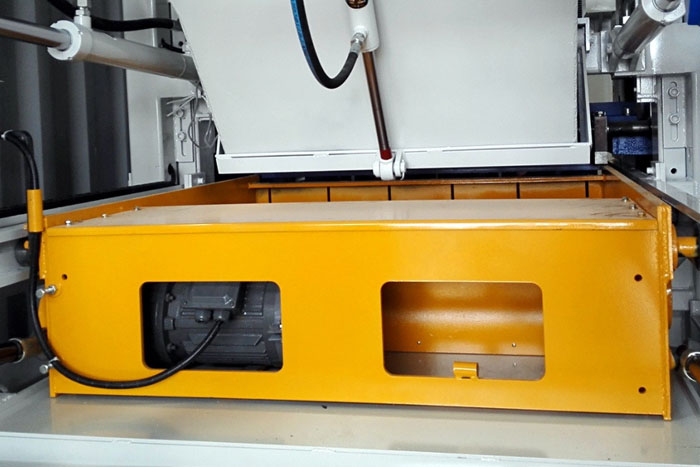

3. Multi-shaft rotating in 360°and compulsory feeding design are used, greatly improving the density and intensity for the blocks while shortening the time for material feeding.
4. Integrated design on the vibration table not only can reduce the machine weight but also it can improve the vibration efficiently.
5. By adopting the double-line aero vibration-proof system, it can reduce the vibrating force on the mechanical parts, prolonging the machine's lifetime and reducing the noise.
6. High-precision guide bearings are used to assure the precise movement between the tamper head and the mold;
7. High-intensity steel and heat treatment are used for the machine frame, which allows the machine to have a better performance on wear-resistant.
Technical Data
| Moulding Cycle | 15~30s |
| Vibration Force | 60KN |
| Motor Frequency | 50-60HZ |
| Total Power | 31KW |
| Total Weight | 7.5T |
| Machine Size | 5,210*3,530*2,780 mm |
Production Capacity
| Block Type | Dimension (mm) | Pictures | Qty/Cycle |
Production Capacity (Per 8hs) |
| Hollow Block | 400*200*200 |
|
6 | 6,600-8,400 |
| Rectangular Paver | 200*100*60 |
|
21 | 23,000-29,400 |
| Paver | 225*112.5*60 |
|
15 | 16,500-21,000 |
| Curstone | 500*150*300 |
|
2 | 2,200-2,800 |
