1. German precision power system:
1500-ton hydraulic main pressure system, pressure accuracy ±0.5%
Dual 22kW servo vibration motor, 800kN exciting force leading the industry
Patented "3D pulse vibration" technology, density increased by 45%
2. Industry 4.0 intelligent center:
Siemens S7-1500PLC+12-inch smart HMI dual-core control
5G Internet of Things remote operation and maintenance platform, realizing global equipment interconnection
AI algorithm optimizes production parameters in real time, with a yield rate of up to 99.8%
3. New benchmark for energy saving and environmental protection:
Intelligent energy management system, Comprehensive energy consumption is reduced by 40%
Integrated dust removal and noise reduction system, working noise ≤72dB
100% compatible with construction solid waste recycled aggregates
1. Prefabricated building market:
Automatic Block Maker Machine can be used in the production of lightweight and high-strength structural blocks (compression resistance ≥15MPa)
Insulation and decorative integrated blocks (thermal conductivity ≤0.12W/m·K)
Modular building components (dimensional tolerance ±0.3mm)
2. Solid waste recycling field:
Construction waste recycled blocks (solid waste content ≥80%)
Tailing resource blocks (utilization rate ≥75%)
Fly ash environmentally friendly blocks (content ratio ≥60%)
Product Video
Main Technology Features

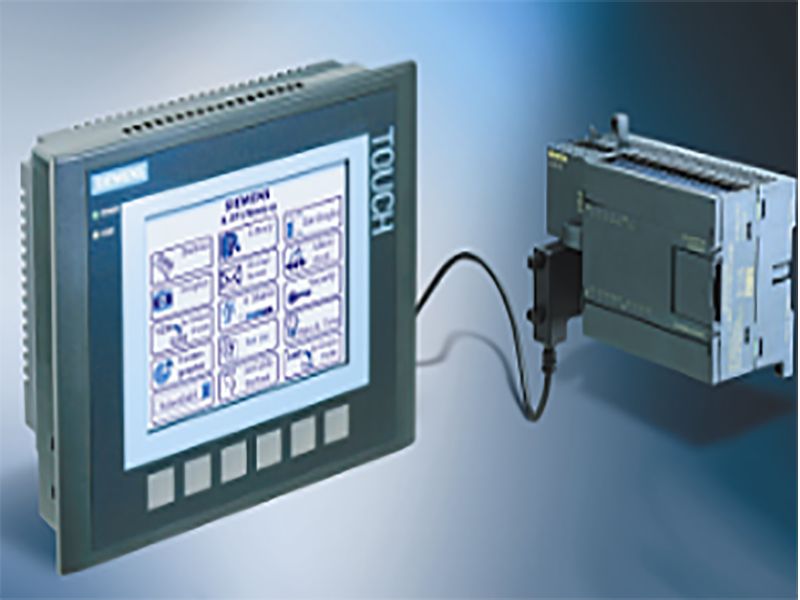

1. Adopts the most advanced frequency conversional control system from German SIEMENS, plus with the Siemens Touch Screen
A. Visualization screen with easy operation;
B. Able to set up, update and amend the production perimeters, to maximize the production output;

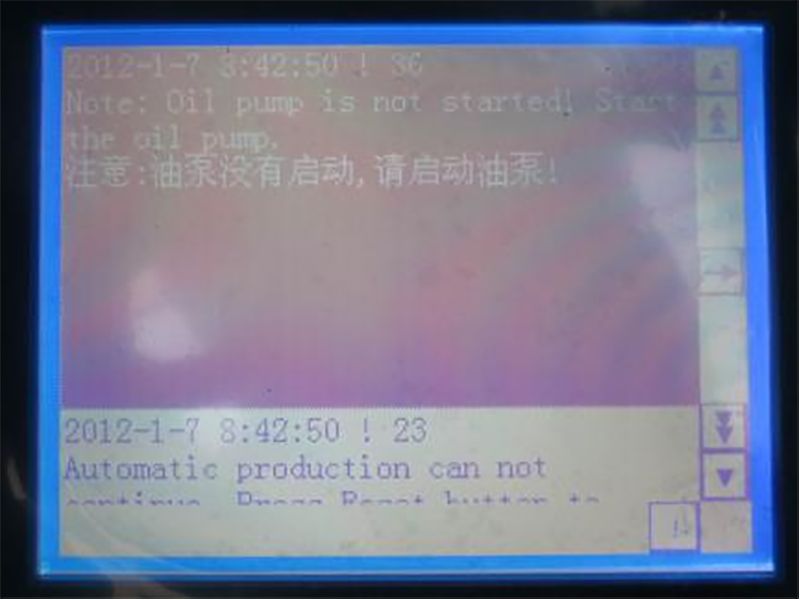

C. Dynamic display of the system’s status, automatic troubleshooting, and warning notice;
D. Automatic locking can prevent the production line from mechanical accidents caused by operation mistakes;
E. Troubleshooting via the teleservice.

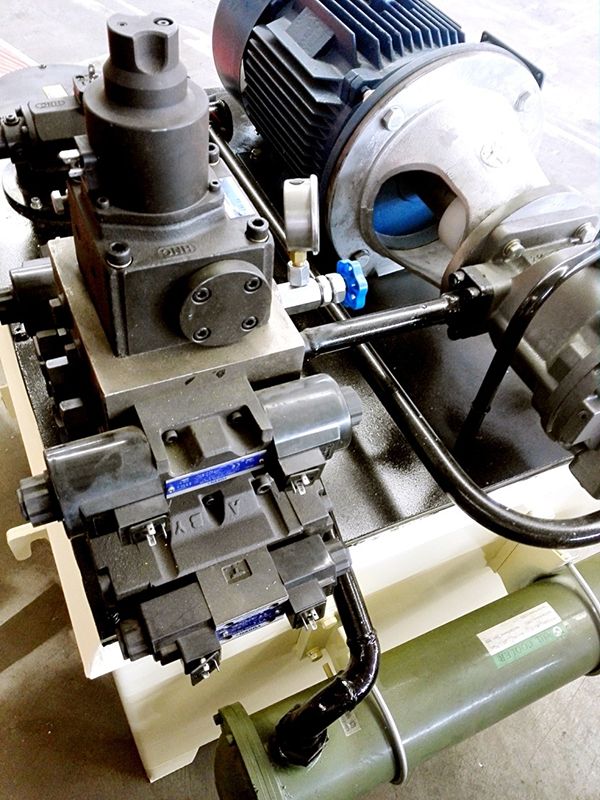

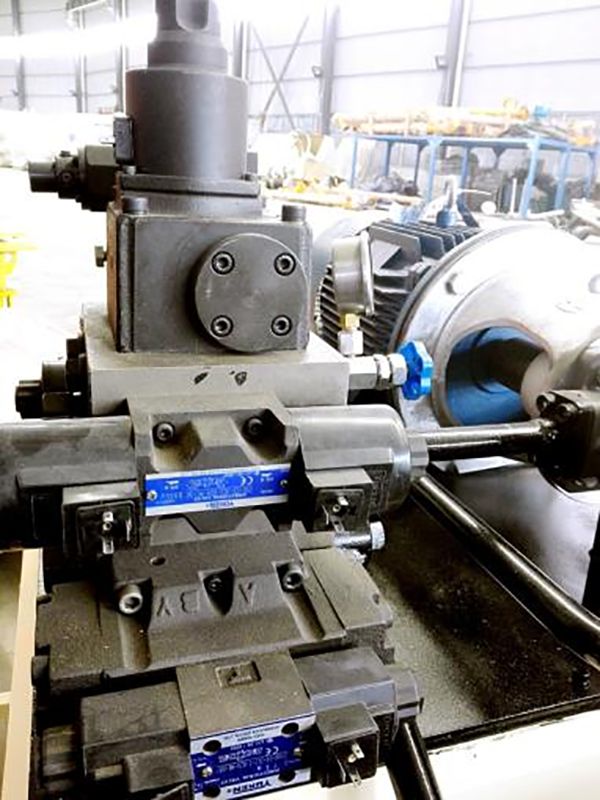

2. Hydraulic pumps and valves from international brands are used.
High dynamic proportional valves and a constant output pump are adopted, so as to have a precise adjustment to the oil flow and pressure, which can provide the client with a stronger quality block, more efficient and energy-saving production.

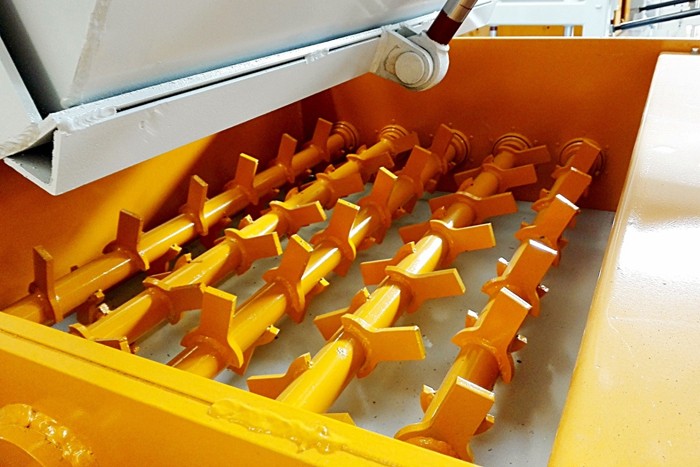

3. Multi-shaft rotating in 360°and compulsory feeding design are used, greatly improving the density and intensity for the blocks while shortening the time for material feeding.

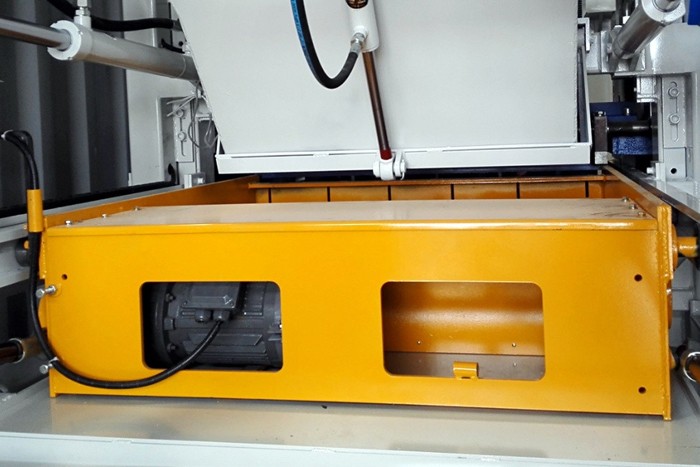

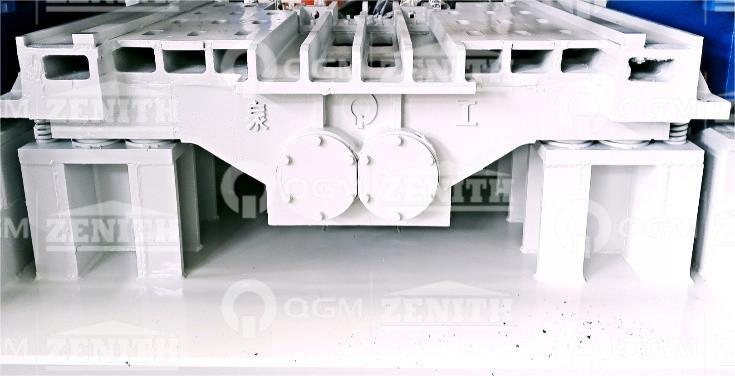

4. Integrated design on the vibration table not only can reduce the machine weight but also it can improve the vibration efficiently.
5. By adopting the double-line aero vibration-proof system, it can reduce the vibrating force on the mechanical parts, prolonging the machine's lifetime and reducing the noise.
6. High-precision guide bearings are used to assure the precise movement between the tamper head and the mold;
7. High-intensity steel and heat treatment are used for the machine frames, which allows the machine to have a better performance on wear-resistant.
Technical Data
| Moulding Cycle | 15~30s |
| Vibration Force | 100KN |
| Motor Frequency | 50-60HZ |
| Total Power | 52KW |
| Total Weight | 7.5T |
| Machine Size |
8,100*4,450*3,000 mm (without face device) 9,600*4,450*3,000mm (with face device) |
Production Capacity
| Block Type | Dimension (mm) | Pictures | Qty/Cycle |
Production Capacity (Per 8hs) |
| Hollow Block | 400*200*200 |
|
10 | 11,000-14,000 |
| Rectangular Paver | 200*100*60 |
|
35 | 38,500-49,000 |
| Paver | 225*112.5*60 |
|
27 | 29,700-37,800 |
| Curstone | 500*150*300 |
|
4 | 4,400-5,600 |
