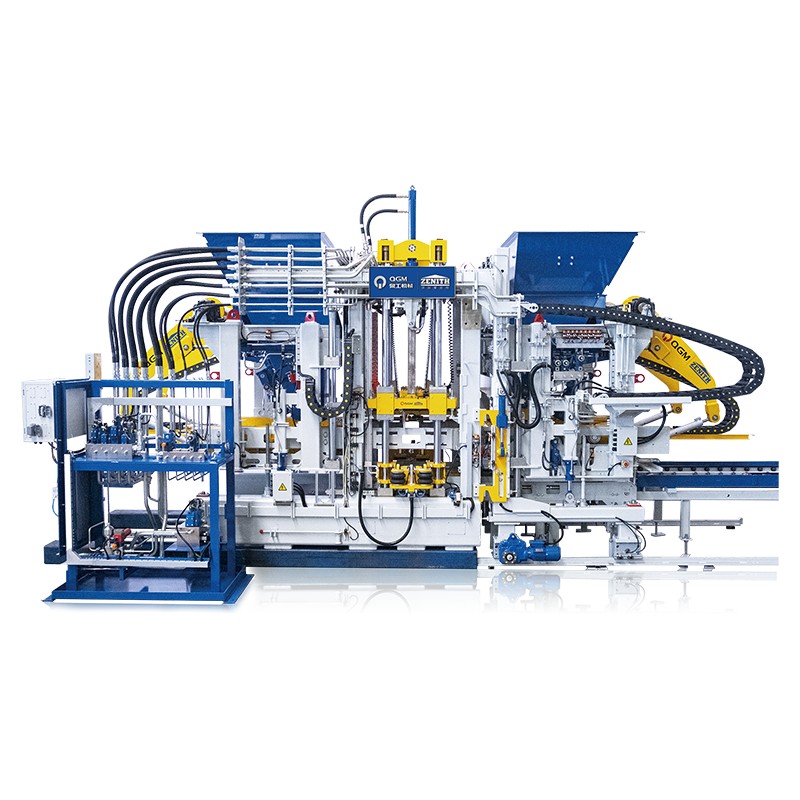

1. Intelligent production center
Equipped with Zenith Brain intelligent control system
Real-time monitoring of 23 production parameters
Adaptive learning algorithm continuously optimizes production rhythm
2. Modular production platform
Original QUICK-SWITCH PRO mold system
Supports fully automatic mold switching within 5 minutes
Compatible with a full range of products from standard blocks to special-shaped components
3. German precision engineering
Adopts aviation-grade high-carbon steel to cast the fuselage, deep-cold treated at -196℃
Key moving parts have an accuracy of μm level (±0.005mm)
Hydraulic system leakage rate <0.1ml/min
1. Efficiency benchmark: 48,000 standard blocks per shift (8 hours)
2. Energy-saving performance: Concrete Block Making Machine is equipped with energy recovery system, power consumption per ton of product ≤3.2kWh
3. Raw material innovation: supports 30%-70% mixing ratio of recycled aggregates from construction waste
Model ZEN-1500ZEN-2500 Maximum molding area 1.5㎡2.5㎡ Applicable products Hollow brick curbstone Installed power 75kW110kW
Technical Parameters
| Forming Area | 1100×820mm |
| Height of Finished | 50-300mm |
| Cycle Time | 15-25S (as per mould) |
| Vibration Force | 80KN |
| Pallet Size | 1200x870x（12-45）mm |
| Production per Mold | 390x190x190mm（10pcs/mold） |
| Bottom Vibration | 2x7.5KW（SIEMENS） |
| Top Vibration | 2x0.55KW |
| Electrical Control | SIEMENS |
| Power | 42.25KW |
| Total Weight |
8T（Without Facemix） 11T（With Facemix） |
| Dimension | 6145x2650x3040mm |
Technology Advantage
QGM SIEMENS Frequency Conversional Technology Was Re-Innovated And Improved By Germany R&D Center. The Block Making Vibration Adopts Low Frequency Standby, High Frequency Operation, Which Improve The Running Speed And Product Quality. At The Same Time, It Reduces The Impact On The Mechanical Parts And Motor, Prolongs The Machine And Motor Lifespan, Saving About 20%-30% Of Electricity When Compared With The Traditional Motor.
Vibration Table Adopts High-Duty Sweden HARDOX Steel, Consisting Of Dynamic Table & Static Table, Which Can Greatly Improve The Vibration Efficiency. While There Are Another Two Vibrators On Top, To Increase Compaction & Guarantee The High Quality Of Concrete Blocks.
QGM Control System Adopts SIEMENS PLC, Touch Screen, Contactors & Buttons Etc., Which Perfectly Combine The Automatic Technology And Advanced System From Germany. SIEMENS PLC Has Automatic Trouble-Shooting Function For Easy Maintenance & Also Automatic-Locking To Avoid Mechanical Accidents Caused By Operational Mistakes. While The SIEMENS Touch Screen Can Display Real-Time Production Status & Achieve Easy Operation By Visualization Representation. In Case Any Part Is Broken In The Future, The Replacement Part Can Be Sourced Locally, Which Can Save A Lot Of Time & Cost.
The Hydraulic Pump & Valve Are From International Brand, Which Adopt High Dynamic Proportional Valve And Constant Output Pump To Adjust The Speed & Pressure, With The Features Of High-Stability, High Efficiency And Energy-Saving.
QGM Intelligent Equipment Cloud System Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, Equipment Health Status Evaluation; Generates Equipment Operation And Application Status Reports And Other Functions; With The Advantages Of Remote Control & Operation, Quick Troubleshooting & Maintenance For The Clients. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.
Corollary Equipment
Batcher
Automatic Pallet Feeder
Moisture Sensor
Finger Car
Block-Pallet Separator
Curing Chamber
Block-Pushing Cuber
