1. New urbanization construction
Permeable bricks for sponge cities (permeability ≥1.5mm/s)
Ecological slope protection bricks (compressive strength ≥MU15)
2. Green building applications
Assembled building blocks (bulk density ≤1200kg/m³)
Self-insulating decorative integrated bricks (thermal conductivity ≤0.15W/(m·K))
3. Solid waste resource utilization
Building recycled aggregate bricks (solid waste utilization rate ≥90%)
Fly ash environmentally friendly bricks (mixing ratio ≥40%)
4. Special engineering needs
Anti-static floor tiles (resistance value 10⁶-10⁹Ω)
Acid-resistant refractory bricks (acid resistance ≥98%)
1. TÜV certified German quality
2. 24-month long warranty
3. Full life cycle technical services

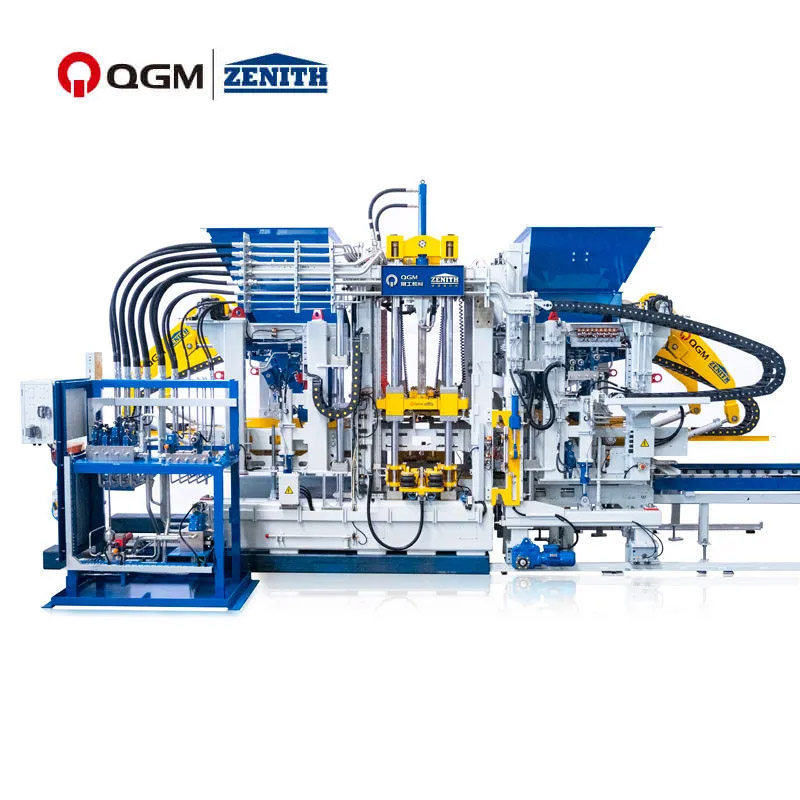

Technical Data
| Maximum Forming Area | 1,280*850mm |
| Block Height | 40-300mm |
| Cycle Time | 14-24S(depending on block type) |
| Servo Vibration Force | 120KN |
| Pallet Size | 1,350*900*(14-45)mm |
| Vibration Motors in Bottom | 4*7.5KW |
| Top Vibration Motors on Tamper Head | 2*1.1KW |
| Control System | SIEMENS |
| Total Power | 86.4kW (included hydraulic system) |
| Total Weight | 17T(including facemix device) |
Production Capacity
| Block Type | Dimension(mm) | Pictures | Qty/Cycle |
Production Capacity (Per 8hs) |
| Hollow Block | 390*190*190 |
|
9 | 14,400-16,800pcs |
| Rectangular Paver | 200*100*60-80 |
|
36 | 52,800-61,600pcs |
| Interlocks | 225*112.5*60-80 |
|
25 | 42,000-49,000pcs |
| Curstone | 500*150*300 |
|
4 | 4,800-5,600pcs |
