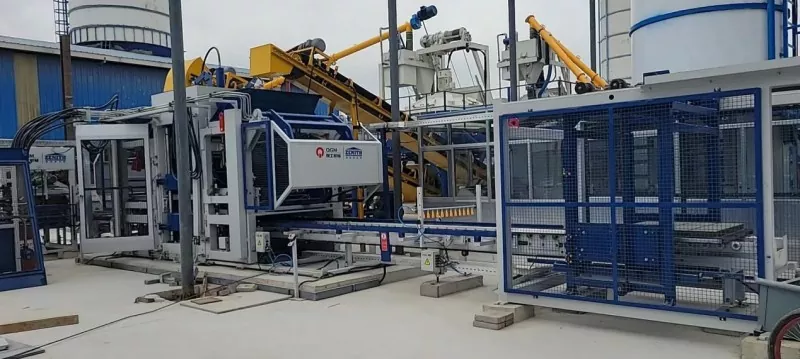

QGM block production line is a fully integrated manufacturing system designed to deliver high efficiency, stable product quality, and reliable long-term performance. By combining intelligent automation with advanced German technology, QGM provides complete solutions for the production of concrete blocks, pavers, curbstones, and other concrete products.
The cement silo is used to store bulk cement and ensure a continuous and stable supply of materials for the entire production process. Its enclosed structure helps reduce moisture and material loss.
The screw conveyor transfers cement from the silo to the cement weighing system efficiently and automatically, minimizing dust pollution and reducing manual handling.
Accurate cement dosing is essential for maintaining consistent concrete quality. The weighing system precisely measures cement according to the production formula, ensuring stable block strength and performance.
The batching machine automatically proportionally combines aggregates such as crushed stone, sand, and other raw materials based on preset formulas. This ensures uniform concrete consistency for different products, including hollow blocks, paving stones, and curbstones.
QGM production lines are equipped with high-performance twin-shaft or planetary mixers that provide fast and homogeneous mixing. The system ensures excellent concrete workability and consistency before entering the forming stage. Optional skip hoists or conveyor feeding systems can support continuous production.
The main forming machine is the heart of the entire concrete block production line. It is responsible for moulding, compacting, and producing high-quality concrete products with precise dimensions and excellent strength.
Heavy-duty steel frame structure for long-term stability and durability
Precision-machined vibration tables ensure uniform compaction and accurate block dimensions
Compatible with various moulds for hollow blocks, solid blocks, pavers, and curbstones
Advanced servo vibration technology improves product density and surface quality
QGM adopts a high-performance hydraulic system equipped with internationally recognized components, delivering precise pressure and flow control during the block forming process. The system offers:
● Stable and responsive operation
● Improved energy efficiency
● Reduced machine wear
● Higher production reliability
This advanced hydraulic technology ensures smooth operation even under demanding industrial production conditions.
The intelligent PLC control system enables fully automatic operation and smart production management.
Features include:
● Siemens-based PLC control system
● Automatic fault diagnosis and alarm functions
● Touchscreen operation interface for easy parameter adjustment
● Remote monitoring and online technical support
Automatic production cycle management for improved efficiency
The intelligent control system significantly reduces manual intervention while increasing production stability and operational efficiency.
Durable and recyclable pallets are used to support freshly formed concrete products during transportation and curing. These pallets ensure stable block shape and smooth demoulding.

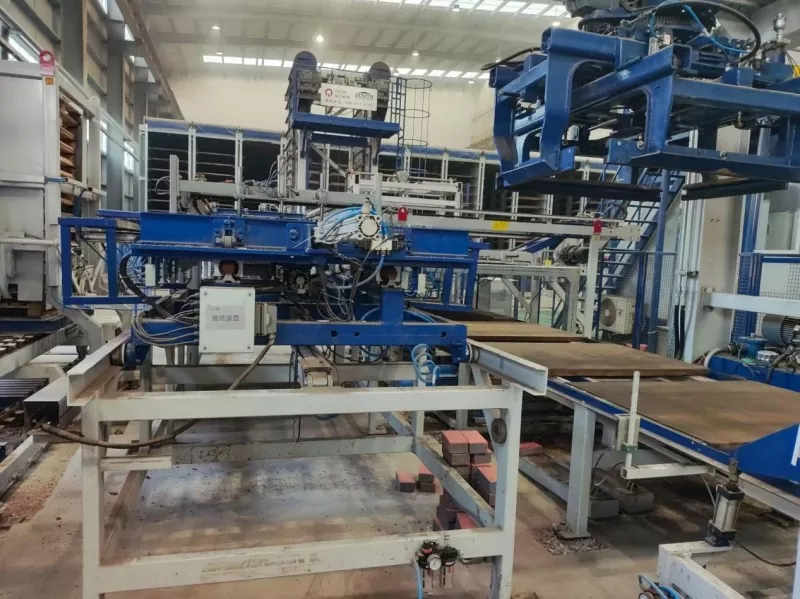

The automatic stacker organizes and stacks finished blocks efficiently, reducing labor requirements and improving overall workflow efficiency.
The automatic pallet feeding system continuously supplies pallets to the forming machine, ensuring uninterrupted and smooth production.
The facemix system automatically applies decorative surface material to concrete products, ensuring uniform coating quality and improving the appearance of pavers and architectural blocks.
To further enhance automation and productivity, QGM production lines can be equipped with:
● Automatic cuber systems
● Robotic handling systems
● Intelligent packaging solutions
● Intelligent Cloud Service System
These advanced systems help manufacturers reduce labor costs and maximize production efficiency.
Forklifts assist with raw material handling, pallet transportation, and finished product movement, especially in semi-automatic or partially automated production plants.
Raw Materials → Batching → Mixing → Material Conveying → Main Forming Machine → Block Conveying → Automatic Stacking / Curing → Finished Product Delivery
QGM integrates advanced German technology, intelligent automation, and precision engineering to provide:
● High production efficiency
● Consistent block quality
● Reduced labor costs
● Lower energy consumption
● Long-term operational reliability
The modular design allows customers to customize automation levels and production capacities according to different project requirements, making QGM an ideal partner for modern concrete block manufacturing plants worldwide.
