As the world's leading manufacturer of concrete block equipment, ZENITH of Germany has launched the high-performance ZENITH 1200S concrete block machine with its century-old technology accumulation and German precision technology. With high efficiency, stability and intelligence as its core, this equipment is designed for the production of high-standard blocks, paving bricks, hollow bricks and other concrete products, and is a benchmark in the field of building industrialization. The advantages of ZENITH 1200S concrete block machine are as follows:
Stable motion performance: The use of advanced mechanical design and manufacturing technology makes the equipment have a more stable motion performance during operation, reducing vibration and noise, which not only improves production efficiency, but also extends the service life of the equipment. High brick making efficiency: With efficient production capacity, it can quickly complete the forming process of concrete blocks, greatly improve production efficiency, and meet the needs of large-scale production. Accurate rapid mold change system: The production line adopts an automatic rapid mold change system, based on the linkage of multiple devices, and realizes rapid mold replacement through intelligent system operation. The mold changing process is safe and efficient, the operation is simple, and the maintenance is convenient. The mold changing time only takes 10-15 minutes. It can quickly switch the production of blocks of different specifications and shapes to meet the diverse market needs. High-end configuration and stable operation: The hydraulic pumps and hydraulic valves are all international brands, such as high-dynamic proportional valves, constant power pumps, etc. These high-end configurations enable the equipment to adjust the speed, pressure, and stroke of hydraulic operation according to different products to achieve a stable, efficient, and energy-saving operation state. The valve group adopts a stepped layout, beautiful appearance, and has a quick adjustment function, which can easily adjust the parameters of the hydraulic system on the control panel.
1. Building blocks and wall materials
Produce high-precision aerated concrete blocks and lightweight partition bricks, which are suitable for
prefabricated buildings, steel structure houses, etc., to help the development of green buildings.
2. Municipal and paving projects
Manufacture permeable bricks, interlocking paving bricks, curbstones, etc., to meet the needs of sponge cities and
municipal road upgrades, and the pressure resistance and wear resistance reach C50 standards.
3. Garden landscape and decoration
Customized imitation stone bricks, cultural stones, and grass bricks are widely used in landscape projects and villa
courtyards, combining beauty and functionality.
4. Industrial and special applications
Production of special building materials such as fireproof bricks and soundproof blocks, suitable for harsh
environments such as tunnels and power plants.
German technology endorsement - reliability verified by customers in 90+ countries around the world.
Full life cycle service - from equipment installation to mold development, full technical support.
High return on investment - low maintenance cost, high yield rate, and fast cost recovery.
Technical Parameters
| Maximum Forming Are | 1100×1080mm |
| Block Height | 40-300mm |
| Cycle Time | 18~25s (depending on block types) |
| Pallet Size | 1200×1150mm |
| Production per Mould | 390×190×190（12pcs/mould） |
| Bottom Vibration | 2×15KW Two-axis Dynamic + Static Vibration Table |
| Tamper Head Vibration | 2×0.55KW |
| Control System | SIEMENS |
| Total Power | 70.35KW |
| Total Weight | Main Machine:14.98T With facemix device: 18.49T |
Technology Advantage

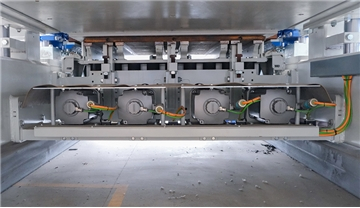

The Machine Is Equipped With The Newly Developed Servo Vibration System, Which Has A Dense And High-Excited Vibration Force, Thus Ensuring Production In An Efficient Way, Especially For Large Products And High-Quality Products, Which Need To Be Produced By Pre-Vibration And Transitional Vibration, Can Achieve A Really Nice Effect.

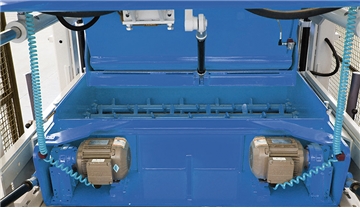

The Feeding System Is Applied With The Germany Patented Design, Which Is Suitable For The Use Of Construction Waste And Other Special Aggregates. What’s More, The Discharging Gate Is Controlled By SEW Motor. The Feeding Frame, Bottom Plate & Mixing Blades Are Made Of High-Duty Sweden HARDOX Steel, Which Strengthen The Sealing Performance And Prevent The Material Leakage To Guarantee The Long Service Life, Feeding Uniform For The Improved Product Quality.

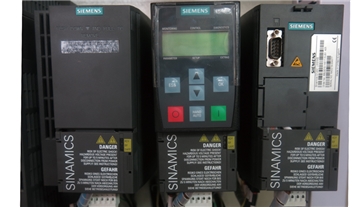

SIEMENS Frequency Conversional Technology Was Re-Innovated And Improved By Germany R&D Center. The Main Machine Vibration Adopts Low Frequency Standby, High Frequency Operation, Which Improve The Running Speed And Product Quality. At The Same Time, It Reduces The Impact On The Mechanical Parts And The Motor, Prolongs The Life Of The Machine And The Motor, And Saves About 20%-30% Of Electricity Compared With The Traditional Motor Operation Control.

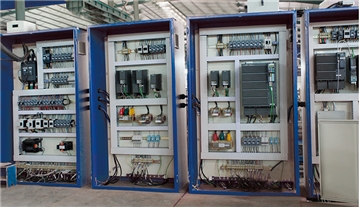

Perfectly Combine The Automation Technology And System From Germany. The Automatic Control Is Of Easy Operation, Low Failure Ratio And High Reliability. At The Same Time, It Has The Functions Of Product Formula Management And Operation Data Collection.

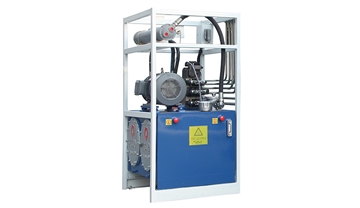

The Hydraulic Pump & Valve Are From International Brand, Which Adopt High Dynamic Proportional Valve And Constant Output Pump To Adjust The Speed & Pressure, With The Features Of High-Stability, High Efficiency And Energy-Saving.

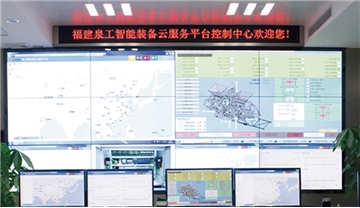

QGM Intelligent Equipment Cloud System Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, Equipment Health Status Evaluation; Generates Equipment Operation And Application Status Reports And Other Functions; With The Advantages Of Remote Control & Operation, Quick Troubleshooting & Maintenance For The Clients. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.
Corollary Equipment

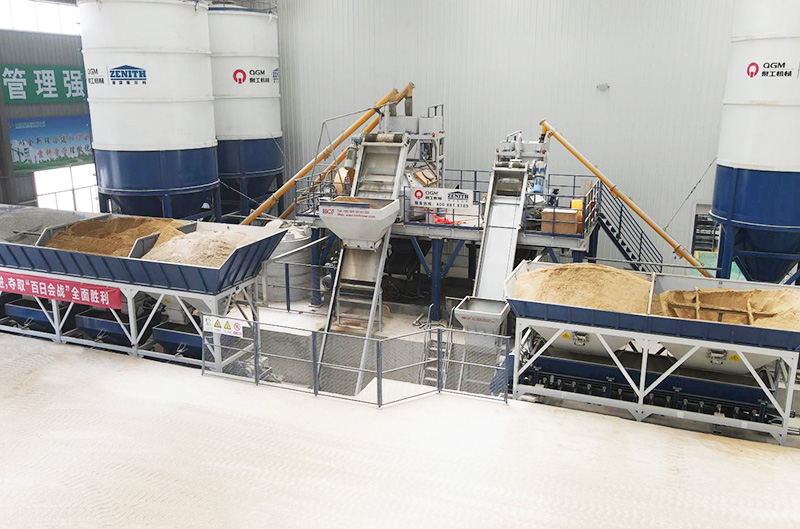

Batcher

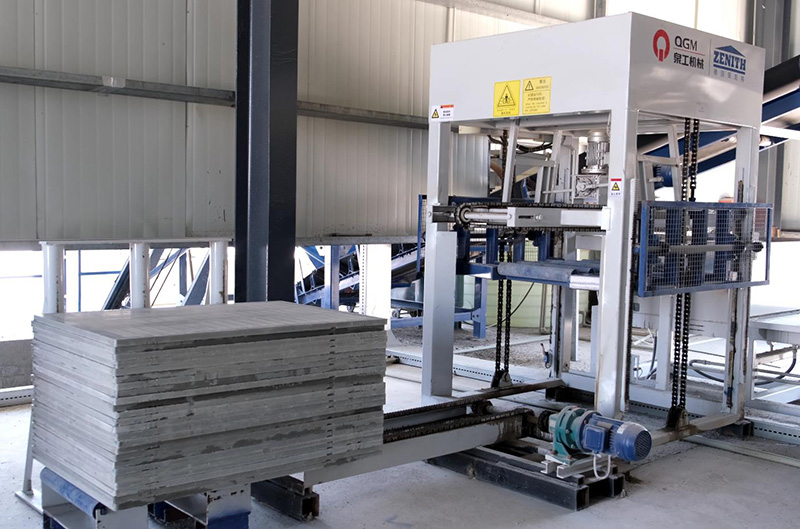

Automatic Pallet Feeder

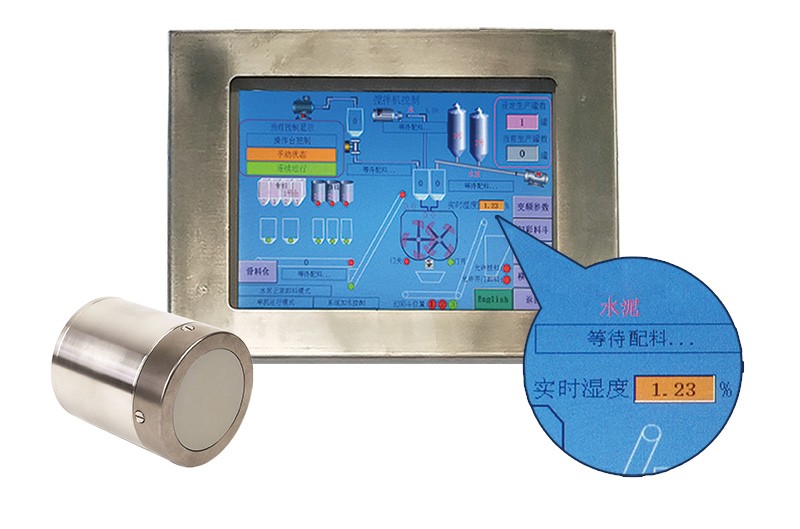

Moisture Sensor
Finger Car
Block-Pallet Separator

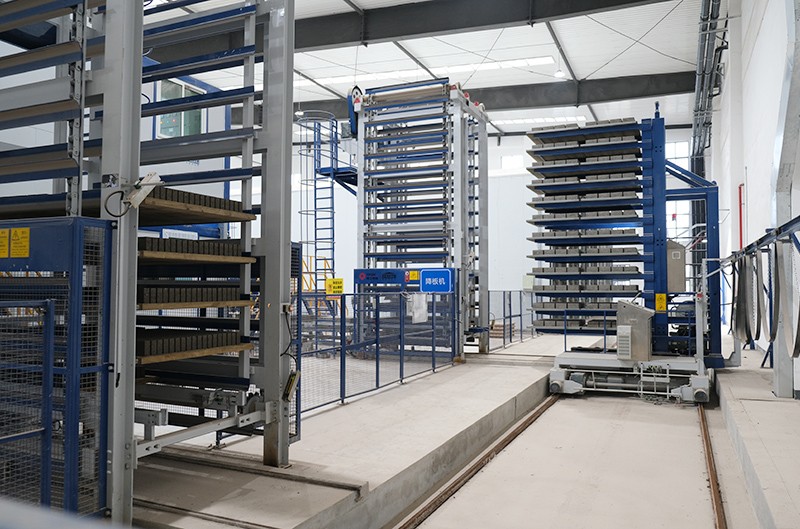

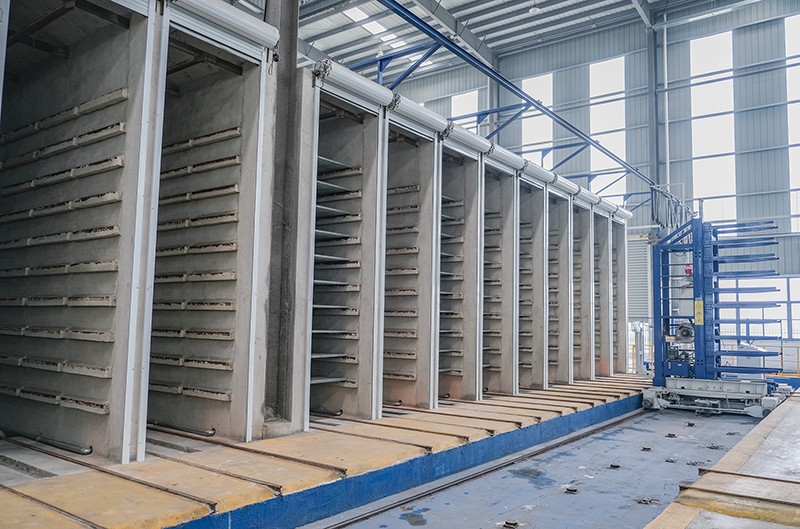

Curing Chamber

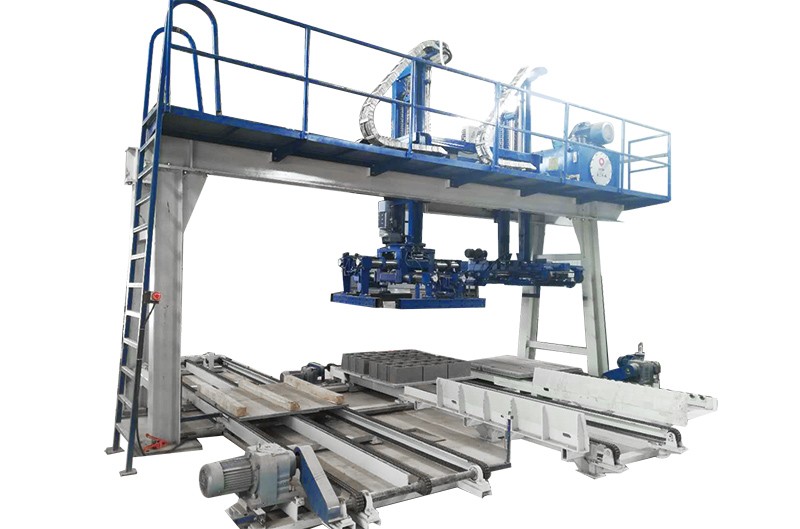

Block-Pushing Cuber
