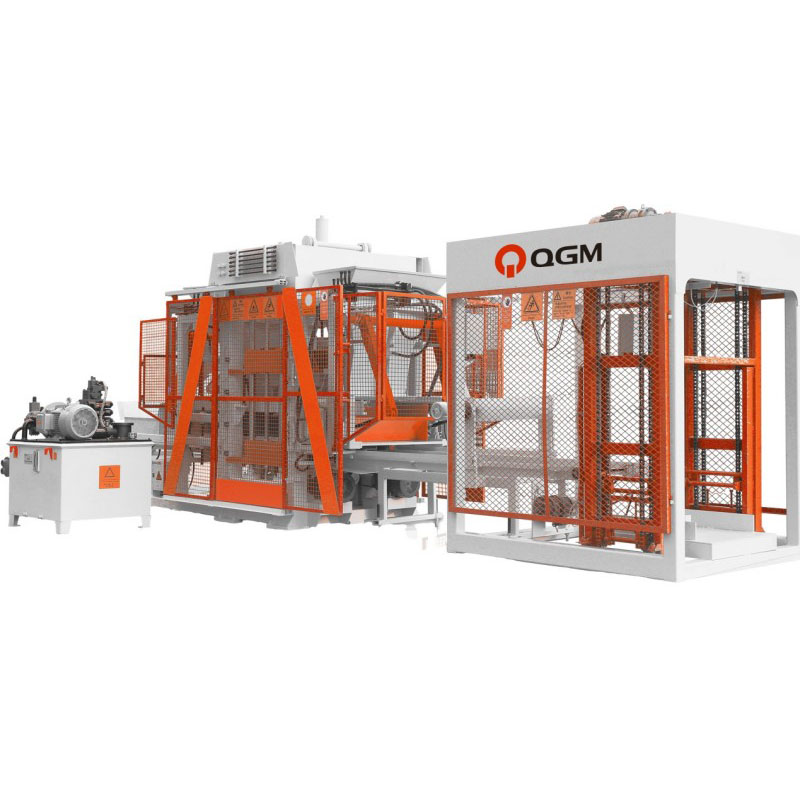

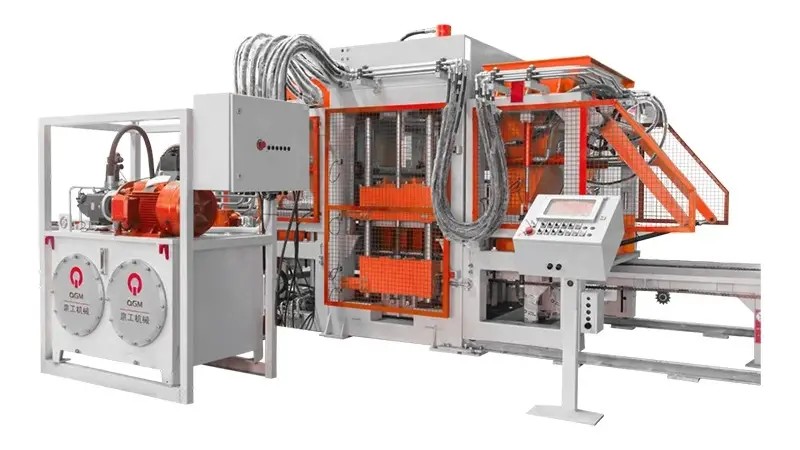

Based on the design principles of universality, modularity, and systemization, the QT6 adopts a standardized modular structure that improves component interchangeability, simplifies maintenance, and provides greater flexibility for different production requirements. Its integrated mechanical, electrical, and hydraulic systems are configured with components from internationally recognized suppliers to support stable equipment performance and precise production control.
With flexible mold configurations and efficient concrete forming technology, the QT6 automatic block making machine is suitable for producing a wide range of concrete products, including hollow blocks, standard concrete blocks, and high-quality concrete paving blocks. Its versatile configuration makes the QT6 a practical solution for manufacturers seeking an efficient and adaptable machine for automated concrete block production.
| Pallet specifications | 850x680mm |
| Molding area | 800x630mm |
| Product height | 50-200mm |
| Number of molded blocks | Hollow bricks: 6 pieces/mold (390×190×190 mm) |
| Standard bricks: 30 pieces/mold (240×115×53 mm) | |
| Paving bricks: 21 pieces/mold (200×100×60 mm) |

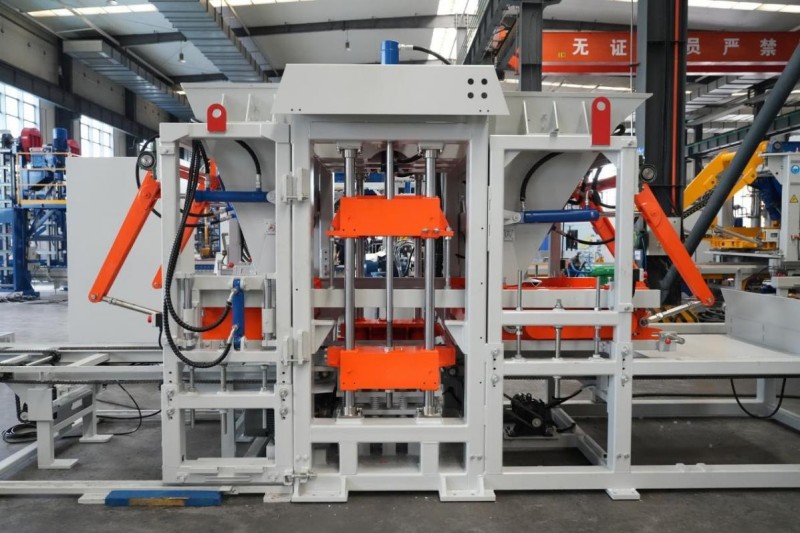

The QT6 fully automatic block making machine features a heavy-duty machine frame manufactured through precision machining and fixture-assisted integrated welding. High-strength Grade 10.9 or higher bolts are used for critical structural connections, providing reliable resistance to heavy loads and continuous vibration during concrete block production.
Critical fastening points are equipped with Nord-Lock anti-loosening washers to maintain connection stability under prolonged vibration. The complete machine frame undergoes vibration stress-relief treatment to reduce residual internal stresses and improve structural stability and dimensional consistency throughout the equipment's service life.
The modular structural design also provides flexibility for future upgrades. Depending on production requirements, optional functions such as side mold opening and closing, core or plate ejection, and polystyrene board insertion can be integrated into the main machine.

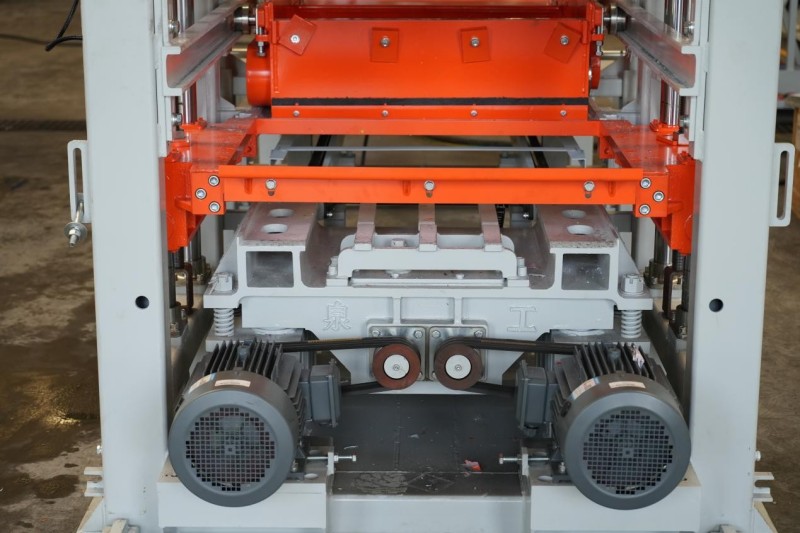

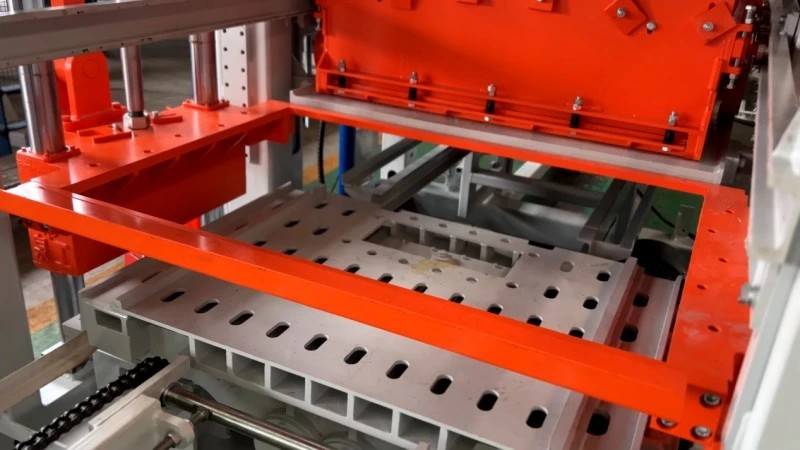

The QT6 is equipped with an integrated cast-steel vibrating table designed to provide stable and consistent vibration transmission across the molding area.
The optimized vibrating table structure helps distribute excitation forces evenly during the forming process, promoting uniform material compaction and consistent block density. This contributes to stable compressive strength, dimensional accuracy, and surface quality of the finished concrete blocks.
The QT6 features a variable-frequency vibration system that allows vibration frequency and motor speed to be adjusted according to different concrete products and mix characteristics.
By precisely controlling the excitation force during the molding cycle, the system helps optimize material compaction for different block types and production requirements. This improves forming consistency while reducing unnecessary energy consumption compared with fixed-speed vibration operation.
The adjustable vibration parameters make the concrete block machine suitable for producing different products with varying material compositions, shapes, and density requirements.

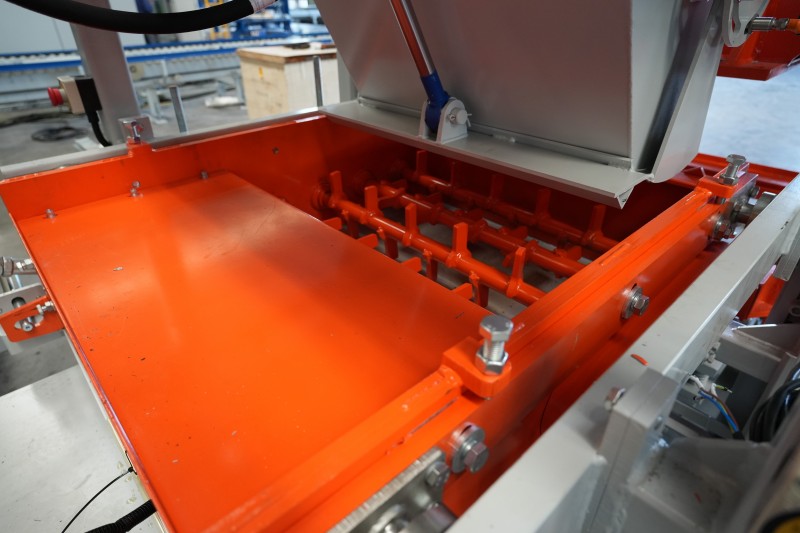

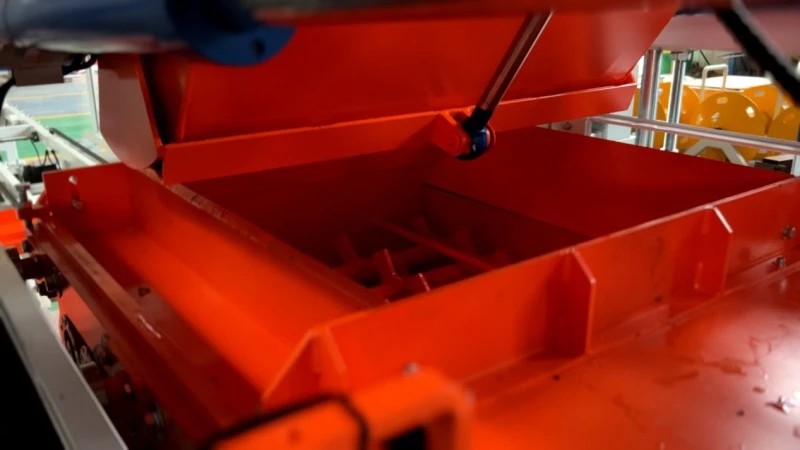

The QT6 feeding system is designed to provide uniform material distribution during the concrete block forming process. The mixing shaft is driven by an internationally recognized mixing motor, while the feeding frame, base plate, and mixing blades are manufactured from high-strength HARDOX wear-resistant steel for improved wear resistance and service durability.
The optimized sealing structure helps reduce material leakage during operation. The combined mixing process of forced mixing and reciprocating oscillation promotes uniform material distribution and improves the consistency of the concrete mix delivered to the mold.
Stable feeding and consistent material distribution are essential for achieving uniform block density, dimensional accuracy, and reliable product quality.

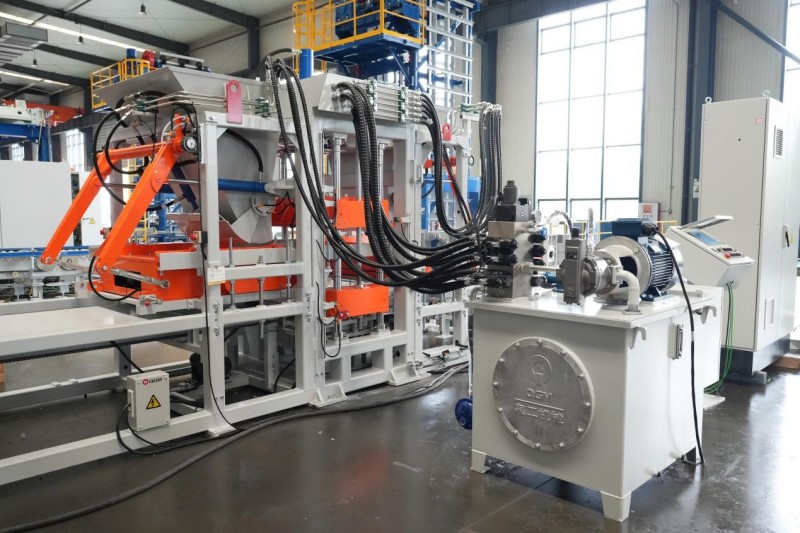

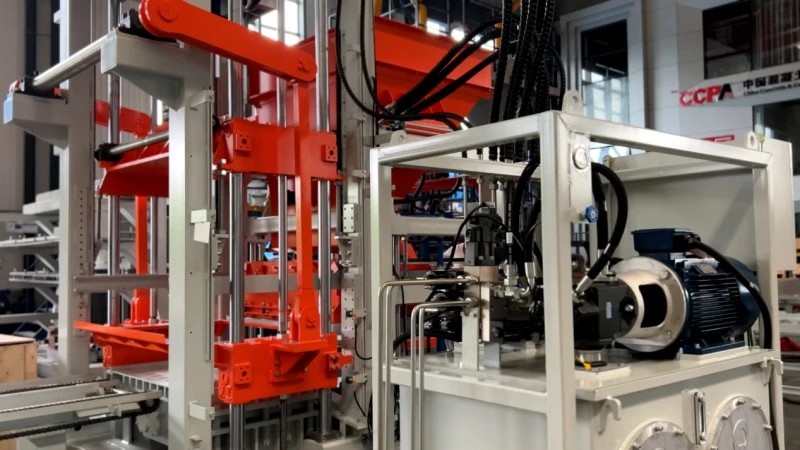

The QT6 hydraulic system uses hydraulic pumps and valves from internationally recognized manufacturers to provide reliable power transmission and precise forming control.
The hydraulic components adopt a compact stepped and three-dimensional layout, optimizing the use of internal machine space while providing convenient access for inspection and maintenance.
Key hydraulic parameters, including operating speed, system pressure, and cylinder stroke, can be adjusted according to different product types and forming requirements. This flexible hydraulic control helps maintain stable molding performance while supporting efficient operation and lower energy consumption.

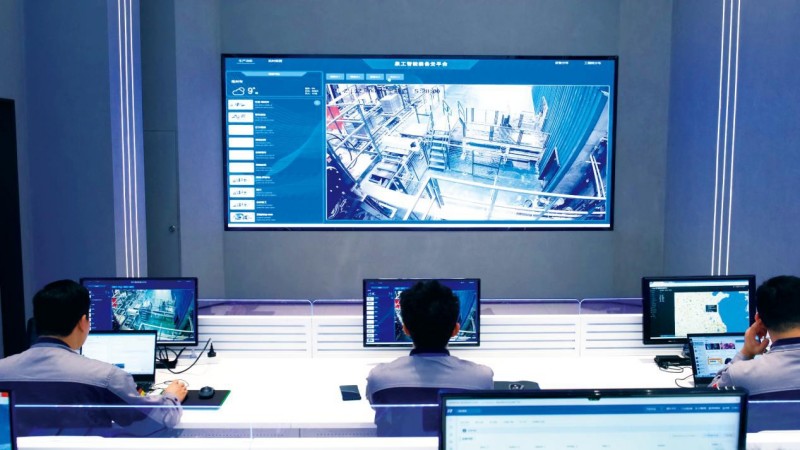

The QGM Intelligent Equipment Cloud Service Platform provides a digital solution for monitoring, diagnosing, and managing automatic block making machines throughout their operating lifecycle. By integrating cloud computing, industrial data communication, equipment modeling, artificial intelligence, and big data analytics, the platform continuously collects and analyzes machine operating data to provide greater visibility into equipment performance and production status.
Through remote connectivity, operators and maintenance teams can monitor equipment operating conditions, perform remote system upgrades, and access machine status information without being physically present at the equipment. The platform also supports intelligent fault prediction, remote diagnosis, equipment health assessment, and automated equipment operation reports, helping users identify potential maintenance requirements at an early stage.
By combining real-time equipment monitoring, remote diagnostics, predictive maintenance, and digital equipment management, the QGM cloud platform helps concrete product manufacturers improve maintenance efficiency, reduce unexpected downtime, and optimize the long-term availability of their concrete block production equipment.
