1. Fully Automated Production

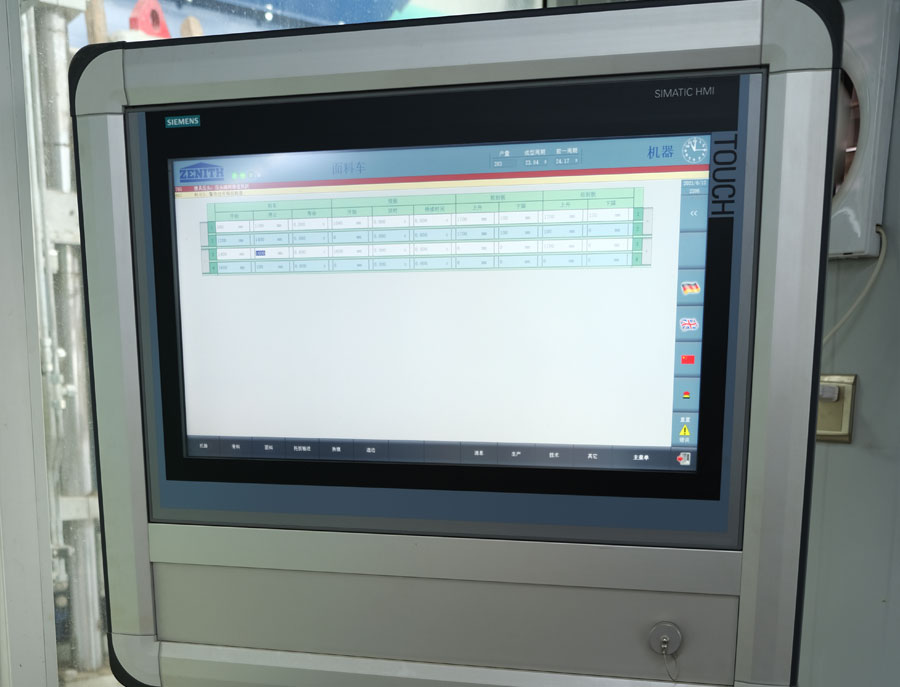

Zenith Brick Making Machine adopts modular design and is equipped with intelligent control system. It automates the whole process from raw material ratio, pressing and forming to stacking and maintenance, significantly improving production efficiency and reducing labor costs.
2. High pressure and precision molds

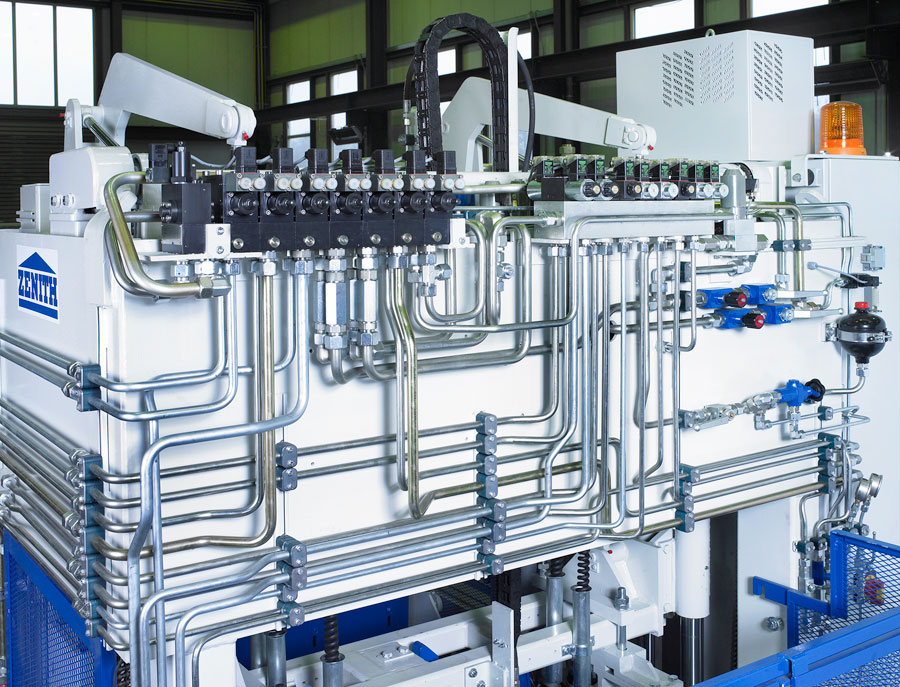

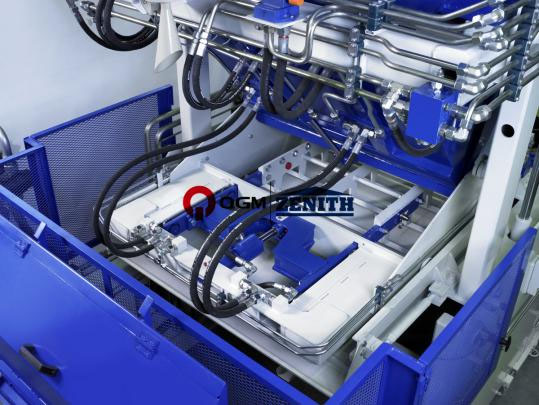

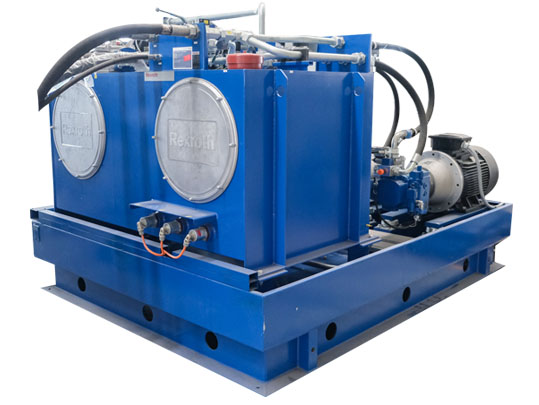

The hydraulic system provides ultra-high pressure forming force (up to 3,000 tons) to ensure high density and excellent strength of brick blanks; German precision steel molds can customize a variety of brick types to meet different market needs.
3. Energy saving and environmental protection
Low energy consumption design combined with waste recycling technology to reduce resource waste; some models support the use of recycled materials such as construction waste and industrial waste to promote a green circular economy.
4. Strong durability
The core components are made of special alloys and German technology, the equipment life is up to decades, the failure rate is low, and maintenance is simple.
1. Construction engineering
Production of load-bearing hollow bricks, insulation blocks, etc., suitable for high-rise buildings and prefabricated houses, taking into account both strength and lightweight requirements.
2. Municipal and road construction
Manufacture of permeable bricks, curbstones, square paving bricks, etc., to meet the durability and aesthetic requirements of sponge cities and municipal engineering.
3. Landscape
Customized imitation stone bricks, flower bed blocks, etc., to enhance the decorativeness and functionality of parks, villa areas and other places.
4. Industrial field
Produce special building materials such as refractory bricks and dock slope protection bricks to meet the needs of use in extreme environments.
- German certified quality: Passed ISO 9001 and EU CE certification, quality recognized worldwide.
- Global service network: Technical centers are set up in 50+ countries to provide localized support and training.
- Flexible customization: Design personalized solutions based on customer production capacity, raw materials, and product types.
Zenith Brick Making Machine - reshape building materials production with technology and help customers achieve excellence!
Technical Data
| Base material hopper | 1,200L |
| Base material feedbox | 2,000L |
| Pigment hopper | 800L |
| Pigment feedbox | 2,000L |
| Max.feeding height of loader | 2,800mm |
| Forming size | |
| Max forming length | 1240mm |
| Max foming width(producing on the vibration table) | 1.000mm |
| Max foming width(producing on the ground) | 1,240mm |
| Product height | |
| Multi-layer production | |
| Min.product height(producing on the pallet) | 50mm |
| Max. product height | 250mm |
| Max stacking heightpallet height of one layer product) | 640mm |
| Low level production on the pallet | |
| Max product height | 600mm |
| Low level production on the floor | |
| Max.product height | 650mm |
| Production on the floor | |
| Max. product height | 1.000mm |
| Min product height | 250mm |
| Machine weight | |
| Without mould and pigments device | 11.7T |
| Pigment device | 1.7T |
| Machine size | |
| Total length(without pigment device) | 4,400mm |
| Total length(with pigment device) | 6,380mm |
| Max. total height | 3,700mm |
| Min total heigh(ransport height) | 3,240mm |
| Total widh(ncluding control panel) | 2.540mm |
| Vibration system | |
| Max. exciting force of the vibration fable | 80KN |
| Min. excting force of the top vibration | 40KN |
| Energy consumption | |
| Based on the maximum number of vibrating table | 42KW |
Production Capacity
| Block Type | Dimension (mm) | Pictures | aty/Cycle | Cycle Time | Production Capacity (Per 8hs) |
| Hollow Block | 400*200*200 |
|
12 | 40s | 8,640 pcs |
| Rectangular Paver | 200* 100*60 |
|
54 | 38s | 817m2 |
| Rectangular Paver (without facemix) | 200*100*60 |
|
54 | 36s | 864m2 |
| UNI Pavers | 225*112.5*60-80 |
|
40 | 38s | 757m2 |
| Curstone | 150*1000*300 |
|
4 | 46s | 2,504 pcs |
