1. Municipal engineering and road construction
Permeable bricks & curbstones: meet sponge city standards, improve rainwater permeability, and reduce the risk of
waterlogging.
Paving bricks & square bricks: high strength, wear resistance, suitable for municipal landscapes such as pedestrian
streets and parks.
Slope protection bricks & water conservancy engineering bricks: anti-scouring structure, stabilize water conservancy
facilities such as river embankments and channels.
2. Building wall and structural materials
Hollow blocks & insulation bricks: light and high strength, suitable for high-rise buildings and prefabricated
houses.
Partition bricks & decorative bricks: diversified surface textures to meet the aesthetic needs of modern
architecture.
Fireproof bricks & earthquake-resistant bricks: improve the safety level of buildings, suitable for special
projects.
3. Environmental protection and solid waste utilization
Fly ash bricks & slag bricks: efficient digestion of industrial waste and reduction of production costs.
Recycled aggregate bricks: use construction waste to recycle aggregates and promote circular economy.
4. Industrial and storage floor
High-strength floor tiles & forklift bricks: pressure and impact resistance, suitable for logistics warehouses and
factory workshops.

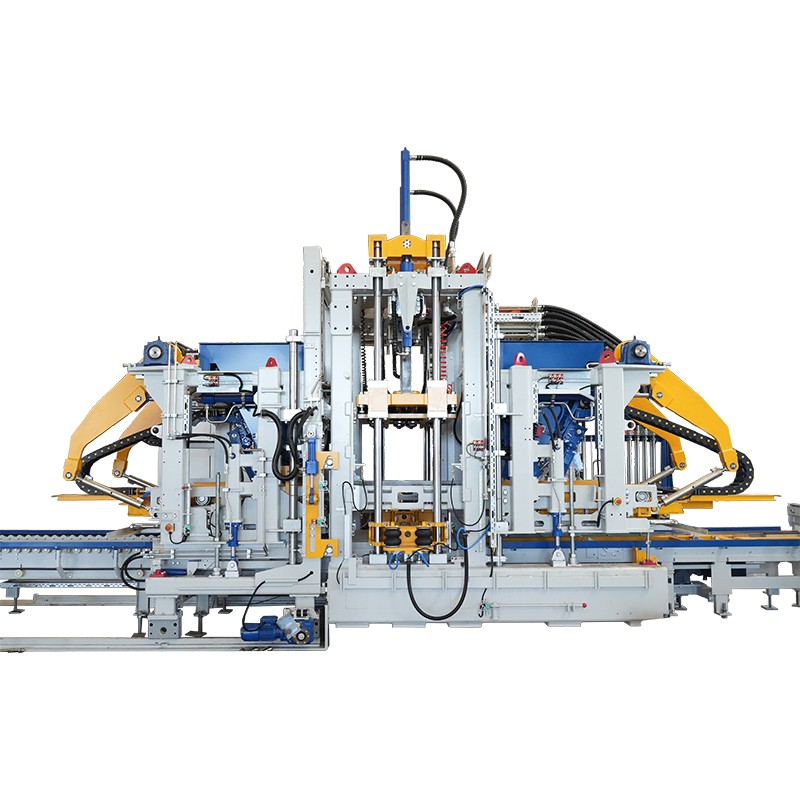

Technical Data
| Maximum Forming Area | 1,280*850mm |
| Block Height | 40-300mm |
| Cycle Time | 14-24S(depending on block type) |
| Servo Vibration Force | 120KN |
| Pallet Size | 1,350*900*(14-45)mm |
| Vibration Motors in Bottom | 4*7.5KW |
| Top Vibration Motors on Tamper Head | 2*1.1KW |
| Control System | SIEMENS |
| Total Power | 86.4kW (included hydraulic system) |
| Total Weight | 17T(including facemix device) |
Production Capacity
| Block Type | Dimension(mm) | Pictures | Qty/Cycle |
Production Capacity (Per 8hs) |
| Hollow Block | 390*190*190 |
|
9 | 14,400-16,800pcs |
| Rectangular Paver | 200*100*60-80 |
|
36 | 52,800-61,600pcs |
| Interlocks | 225*112.5*60-80 |
|
25 | 42,000-49,000pcs |
| Curstone | 500*150*300 |
|
4 | 4,800-5,600pcs |
