Cement Block Machine

Product technical specifications

1. Intelligent hydraulic system
- Six-point linkage hydraulic balanced pressure technology (pressure range 1600-2800 tons)
- Innovative "pre-vibration + high pressure + pressure holding" three-stage molding process
- Molding cycle 12-15 seconds, shift production can reach 2000-2500 blocks (standard blocks)

2. Modular intelligent production line
Raw material intelligent proportioning system (error ≤ 0.5%)
Fully automatic stacking manipulator (stacking height adjustable 1-1.8m)
Remote operation and maintenance diagnosis platform (4G/5G dual-mode access)

3. Military-grade structural design
Integrated casting frame (fatigue resistance life ≥ 500,000 times)
Special alloy mold (service life ≥ 300,000 molds)
German Siemens PLC control system (IP65 protection level)

4. Green production indicators
Industrial solid waste utilization rate: up to 85%
Comprehensive energy consumption: ≤11.5kWh/m³
Noise control: ≤72dB (A)

Core application areas

New urbanization construction
- Produce 12 standard blocks such as 240×115×90mm
- Meet the strength requirements of GB/T8239-2014 (MU10-MU20)

Prefabricated buildings
- Customized embedded blocks with connectors (accuracy ±0.8mm)
- Suitable for PC component dry connection system

Sponge city project
- Manufacture permeable blocks (permeability coefficient ≥0.8cm/s)
- Cement Block Machine supports production of curbstones, tree pools and other products

Industrial storage buildings
- High-strength blocks (compression resistance ≥15MPa)
- Special moisture-proof treatment (water absorption rate ≤6%)

Five advantages of choosing QT6

✓ German TÜV certification + China CCS dual certification
✓ Equipment overall efficiency (OEE) reaches 92.3%
✓ Support 72 hours of continuous production
✓ Quick mold change system (mold change time ≤ 30min)
✓ 19 technical service centers around the world

Technical Parameters

Technology Advantage

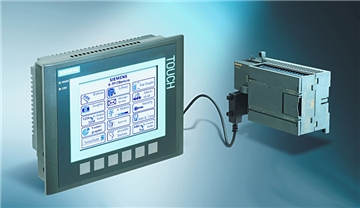

Germany SIEMENS Control System

QGM Control System Adopts SIEMENS PLC, Touch Screen, Contactors & Buttons Etc., Which Perfectly Combine The Automatic Technology And Advanced System From Germany. SIEMENS PLC Has Automatic Trouble-Shooting Function For Easy Maintenance & Also Automatic-Locking To Avoid Mechanical Accidents Caused By Operational Mistakes. While The SIEMENS Touch Screen Can Display Real-Time Production Status & Achieve Easy Operation By Visualization Representation. In Case Any Part Is Broken In The Future, The Replacement Part Can Be Sourced Locally, Which Can Save A Lot Of Time & Cost.

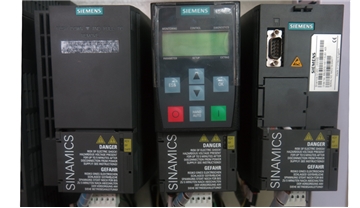

Germany SIEMENS Frequency Vibration Technology

QGM SIEMENS Frequency Conversional Technology Was Re-Innovated And Improved By Germany R&D Center. The Block Making Vibration Adopts Low Frequency Standby, High Frequency Operation, Which Improve The Running Speed And Product Quality. At The Same Time, It Reduces The Impact On The Mechanical Parts And Motor, Prolongs The Machine And Motor Lifespan, Saving About 20%-30% Of Electricity When Compared With The Traditional Motor.

Double High-Dynamic Proportional Valves

Adopts Efficient Double High-Dynamic Proportional Valves, Which Can Automatically Adjust The Oil Flow And Pressure And Protect The Cylinder From Damage Caused By Inertia. Uses Integrated High-Pressure And Soft Oil Pipes With High Quality & Also Easy For Installation.

Compulsory Concrete Feeding System With 360° Multi-Shaft Rotating

It Is A Speed And Rotating Concrete Feeding System, With Uniform Mixing, To Guarantees Density And Intensity Of Concrete Products, Applicable For Different Kinds Of Raw Materials And Molds;

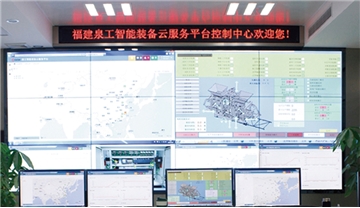

Intelligent Cloud System For Remote Control

QGM Intelligent Equipment Cloud System Realizes Online Monitoring, Remote Upgrade, Remote Fault Prediction And Fault Self-Diagnosis, Equipment Health Status Evaluation; Generates Equipment Operation And Application Status Reports And Other Functions; With The Advantages Of Remote Control & Operation, Quick Troubleshooting & Maintenance For The Clients. Everything Is Interconnected, And The Production And Operation Of Equipment Can Be Seen Through The Network In Every Corner Of The World.

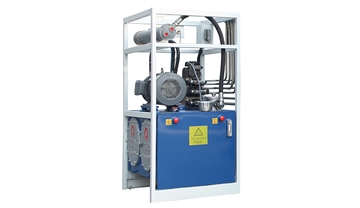

High-Efficient Hydraulic System

The Hydraulic Motor Is SIEEMSN Brand, Valves Are Italy-Brand & The Hydraulic Pipes Are Italy-Made ALFAGOMMA. Adopt Double High-Dynamic Proportional Valve And Constant Output Pump, Which Can Adjust The Oil Flow And Pressure Automatically, With The Features Of High-Stability, High-Efficiency And Energy-Saving.

Corollary Equipment

Stacker

PVC Pallet

Batcher

Mold

Concrete Mixer JS500

Curing Chamber
