Super wear-resistant polishing head made of German special alloy, life is increased by 50%, maintenance cost is extremely low Dynamic balancing technology running vibration <0.01mm, ensuring that there are no hidden cracks in the brick body Intelligent thickness adjustment ±0.05mm error control, meeting the strict standards of high-end building materials Modular design quickly replaces polishing units to support flexible production needs
Zenit polishing tile machine is specially designed for high-end building decoration materials, and its
finished products are widely used in:
1. Commercial space
- Polished tiles on the floor and walls of star-rated hotels/shopping centers to enhance the overall
luxurious texture
- High-frequency use areas such as airports and exhibition halls, anti-scratch properties extend service
life
2. Residential fine decoration
- Large-size polished tiles (900×1800mm and above) to achieve seamless modern minimalist style
- Imitation natural stone texture tiles, restore marble visual effects at a lower cost
3. Special engineering
- Anti-static polished tiles (data center/laboratory)
- High anti-slip coefficient bricks (safety-sensitive places such as hospitals and nursing homes)
4. Overseas market adaptation
- Support EU CE/Middle East SASO and other certification standards to help customers expand into the
international market
Choose Zenith, choose lasting and shining quality
Whether it is the upgrading of traditional ceramic enterprises or the emerging building materials brands to
seize the high-end market, Zenith polishing tile machines are made in Germany with reliability and
personalized solutions.
| Polishing brick making machine | |
| Machine name | Polishing brick making machine |
| Number of polishing heads | 16 |
| Belt width | 850mm |
| Polishing sheet diameter | Φ200mm |
| Maximum polishing size | 800mm |
| Grinding head motor power | 5.5kw*16 |
| Swing motor power | 1.1kw |
| Belt motor power | 3kw |
| Maximum polishing thickness | 60mm |
| Polishing speed | 0.1—4m/min |
| Total power | 92.1kw |
| Total weight (approximately) | 6500kg |
|

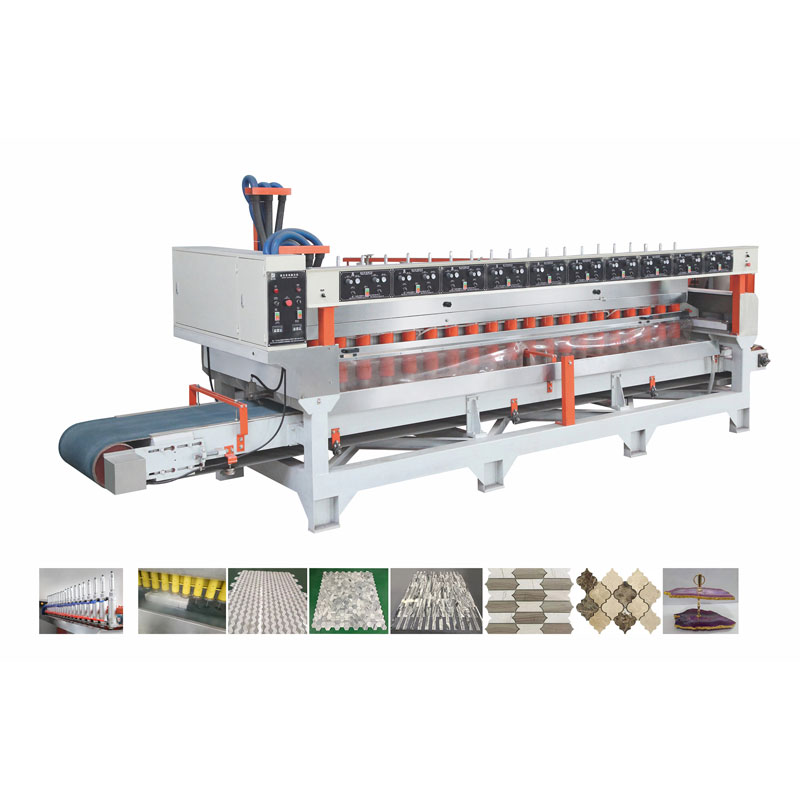

The picture is for reference only, please refer to the actual object
|
|
