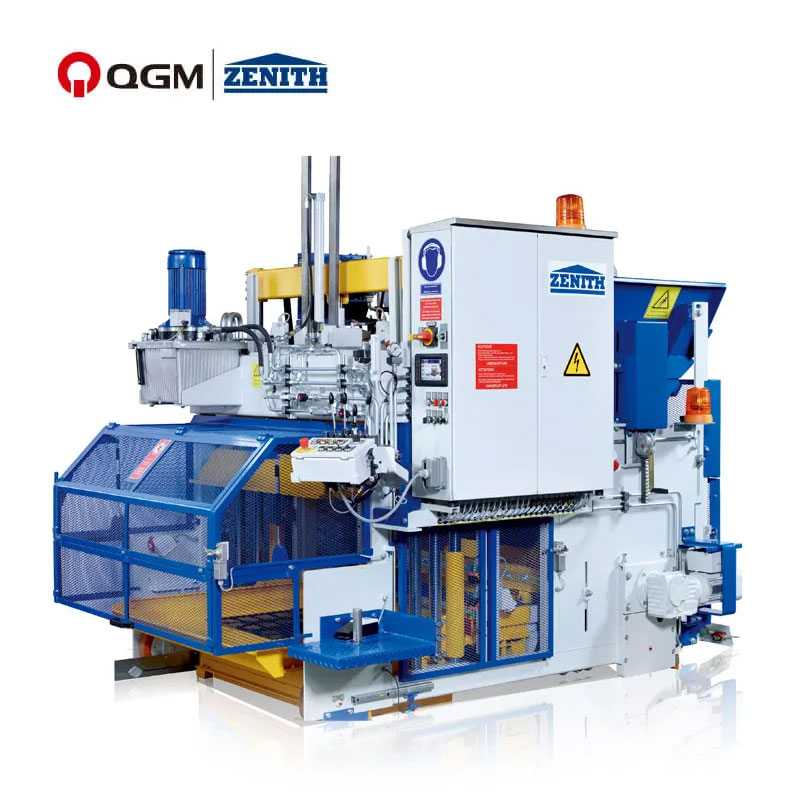

German technology, precise and reliable: the all-steel welded body is equipped with a high-precision hydraulic system to
ensure long-term stable operation of the Brick Laying Machine, and the qualified rate of finished products is as high as 99%.
Intelligent and efficient: the automated control system supports one-button mold change, and the single-shift production
capacity can reach 2,000-3,000 standard bricks (depending on the mold configuration), reducing labor costs by 70%.
Green energy saving: the optimized power design saves 30% energy compared with traditional equipment, and the noise and
dust emissions meet the EU CE standards.
Flexible adaptation: compatible with more than 100 molds, easy to switch product types, to meet the needs of municipal
engineering, residential construction, garden landscape and other scenarios.
1. Acceleration of urban infrastructure
In the context of rapid urbanization in developing countries, Zenith 913 has become the preferred equipment for
large-scale affordable housing projects and municipal road construction with its high production capacity, helping
customers to shorten construction periods with standardized bricks and cope with the pressure of rising raw material
costs.
2. Upgrading trend of environmentally friendly building materials
With the mandatory requirements of Europe, the United States and China for the recycling of construction waste, 913 can
be used with recycled aggregates to produce environmentally friendly bricks, helping the circular economy industrial
park to seize the green building certification market.
3. Trend of miniaturized production lines
For small and medium-sized investors in emerging markets such as Africa and Southeast Asia, its compact footprint (only
800 square meters) and low maintenance cost significantly reduce the entry threshold and quickly recover investment.
Zenith 913 is not only a brick manufacturing equipment, but also an industrial benchmark for the intelligent
transformation of the construction industry. Choosing Zenith means choosing the same quality belief as German giants
such as Daimler and Siemens, empowering the birth of each brick with precision machinery and building a solid foundation
for future cities.
Technical Data
| Features | |
| Hopper volume | 1,000L |
| Max.feeding height of the loader | 2,005L |
| Max forming length | 1,240mm |
| Max.foming width | 1,130mm |
| Min product height | 175mm |
| Max. product height | 330mm |
| Weight | |
| Including mould and vibration motor | 5T |
| Size | |
| Total lengthi | 2,850mm |
| Total height | 3,000mm |
| Total width | 2,337mm |
| Vibration system | |
| Max exciting force of vibration table | 48KN |
| Max.exciting force of upper vibration | 20KN |
| Energy consumption | |
| With maximum numbers of vibration motor | 16KW |
Production Capacity
| Block Type | Dimension(mm) | Pictures | Qty/Cycle | Cycle Time | Production Capacity(Per 8hs) |
| Hollow Block | 400*200*200 |
|
12 | 35s | 9,792pcs |
| 400*150*200 | 16 | 35s | 13,165pcs | ||
| 520*160*200 | 12 | 35s | 9,792pcs | ||
| Soild Block | 225*112.5*80 |
|
12 | 35s | 9,792pcs |
