1. 3D intelligent forming system
- Kerbstone Brick Machine adopts multi-axis linkage hydraulic control technology to achieve one-time forming of curbstone curved surface/special-shaped structure
- Adjustable pressure output range of 800-2500 tons to meet different strength requirements (C30-C60)
2. Military-grade durable design
- The core module adopts ThyssenKrupp special alloy steel
- Original vibration + static pressure dual-mode forming process, the product density is increased by 20%
3. Smart production unit
- Integrated automatic batching → forming → maintenance → packaging process
- Equipped with AI visual inspection system, the defect recognition accuracy reaches 0.1mm
4. Green production mode
- The utilization rate of industrial waste slag can reach up to 70%
- Energy consumption is reduced by 35% compared with traditional equipment, and the noise is controlled below 75 decibels
Urban road upgrade
- Production of anti-collision curbstones with a height of 150-450mm
- Meet the requirements of JT/T522-2022 industry standards
Sponge city construction
- Manufacturing ecological curbstones with drainage grooves
- Water permeability coefficient ≥1.5×10⁻²cm/s
- Customized granite texture/arc-shaped decorative curbstones
- Surface Mohs hardness ≥7
Six reasons to choose Zenith
① European CE certification + China GB standard double compliance
② Single machine daily output 3000-8000 linear meters
③ Mold life of more than 500,000 times
④ Remote diagnosis system response time <2 hours
⑤ 23 countries resident technical service team
⑥ Support incoming material testing and OEM production
| Curbstone polishing machine technical parameters list configuration | |||||||
| Name | Model | Specifications (length*width) | Components | Quantity | Speed | Power | |
|
|
|
|
Name | Power |
|
|
|

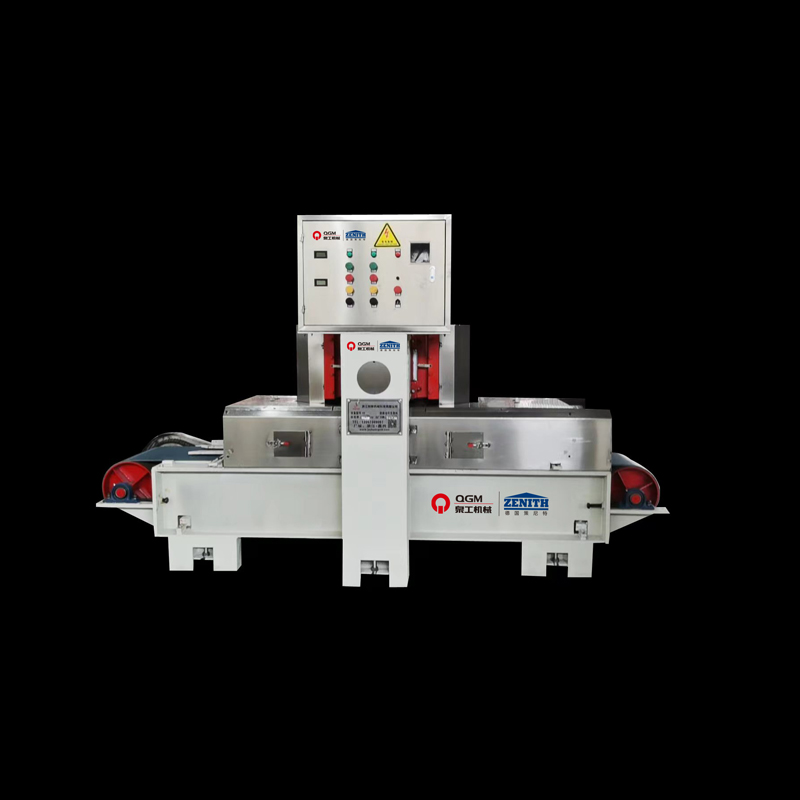

| Back thickness machine | CX20-50 type 2 grinding head | 3260*1500 | Flat belt motor | 1.5KW | 1 | 0-1800mm/min | 32.24KW |
| Grinding head motor | 15KW | 2 | 1400r/min | ||||
| Grinding head lifting bipolar motor | 0.37KW | 2 | 1400r/min | ||||
| Pneumatic automatic flip machine | CX20-50 type | 2907*2100 | Flip motor | 0.37KW | 2 | 1400r/min | 0.74KW |

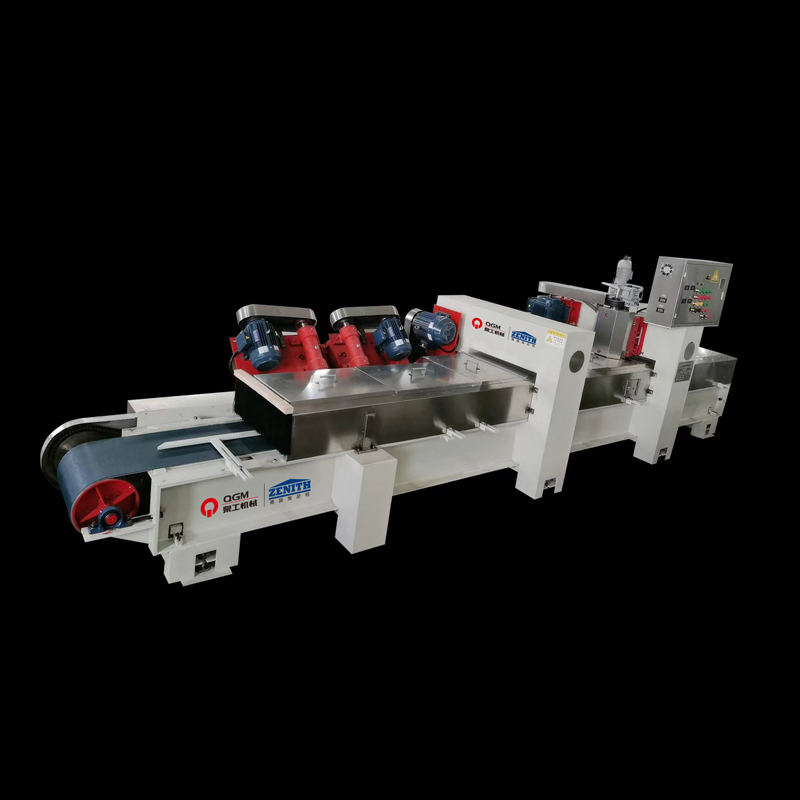

| Front thickness grinding machine | CX20-50 type 6 grinding heads | 7160*1500 | Surface grinding disc motor | 15KW | 2 | 1400r/min | 51.94KW |
| Surface grinding disc lifting motor | 0.37KW | 2 | 1400r/min | ||||
| Side grinding disc motor | 5.5KW | 2 | 1400r/min | ||||
| Chamfering grinding motor | 4KW | 2 | 1400r/min | ||||
| Flat belt motor | 2.2KW | 1 | 0-1800mm/min | ||||
| Pneumatic polishing machine | CX20-50 type 9 polishing head | 8160*1500 | Flat polishing disc motor | 5.5KW | 4 | 960r/min | 37.32KW |
| Side polishing disc motor | 3KW | 3 | 1400r/min | ||||
| Chamfering motor | 1.5KW | 2 | 1400r/min | ||||
| Flat belt motor | 2.2KW | 1 | 0-1800mm/min | ||||
| Side belt motor | 0.37KW | 1 | 1400r/min | ||||
|
|
|
|
Cleaning brush motor | 0.75KW | 1 | 1400r/min | |
|
|
|
|
|
|
|
Total 122.24KW | |
|
|
Maximum grinding specification | Width 450mm*Height 200mm |
|
|
|
|
|
|
|
Minimum grinding specifications | Width 150mm*Height 100mm |
|
|
|
|
|
|
|
Output | 660 meters per shift in 10 hours |
|
|
|
|
|
|
|
Water consumption | 50 tons of circulating water per hour |
|
|
|
|
|
| Stainless steel plate for the side cover and motor cover of the whole set of equipment | |||||||
| Product name and specifications |
|
|
Unit | Quantity (unit) |
|
|
|
| 1.CX20-50 type curbstone thickness determination, plate turning, grinding, polishing combination machine |
|
|
Set | 1 |
|
|
|
| One set includes the following products: |
|
|
|
||||
| CX20-50 type 2 grinding head back thickness machine |
|
|
unit | 1 |
|
|
|
| CX20-50 type pneumatic automatic flip machine |
|
|
unit | 1 |
|
|
|
| CX20-50 type 6 grinding head front thickness flat grinding side grinding chamfering grinding polishing machine |
|
|
Unit | 1 |
|
|
|
| CX20-50 9-head front and side chamfering pneumatic polishing machine |
|
|
Unit | 1 |
|
|
|
